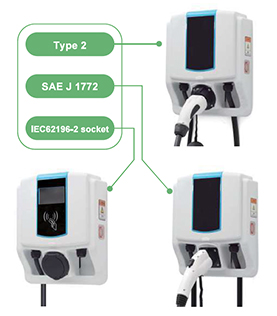

Home AC EV Charger
JAYUAN is a professional solar products company/inc that offer Solar Energy Products & Solutions to satisfy your needs. As a professional Solar Energy Products & Solutions company, JAYUAN provides a unique solar power system for solar energy products.
AC EV Charger for home is the most common and widely used charger around the world. This charger is equipped with an AC plug and only requires a normal electric power connection to be used at home. The input current is 32A and the output power for the commonly used charger is 7kw. One of the main advantages of this ev car home charger is that it's easy to install and usually can be installed by wall mounted method.
Features of Jayuan Home AC EV Charger :
For Home. and more
Optional 7KW or 22KW
Optional Touching Display
Optional Internet Management
Optional Card User Management
Specification of Jayuan Home AC EV Charger
Model |
CHR 7/22 (SOCKET) |
CHR 7/22 (NO DISPLAY) |
Rated Input Voltage |
230 VAC/Single Phase, 380 VAC/3 Phase |
240 VAC, 1-Phase (AC Level 2) |
Output AC Current |
32A |
|
Frequency |
50Hz/60Hz |
|
Output Cable Length |
2 ~ 5 meters |
|
Regulation |
IEC 61851-1: 2017, IEC61851-21-2 |
CCID 20 |
Charging Plug/Socket |
IEC 62196-2: 2016 Type 2 Plug, Type 2 Socket (Shutter Optional) |
SAEJ1772 Type 1 Plug/Socket |
Thermal Protection |
YES |
|
IP Degrees |
IP55 |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Temperature |
-20℃ ~ 50℃ |
|
Communications |
LAN (basic)/4G or Wi-Fi (optional) |
|
Backend Communication |
OCPP 1.6 JSON/SOAP |
Details Of Jayuan Home AC EV Charger
Support Standard of Home AC EV Charger
Dimension And View of Home AC EV Charger
How To Choose A Home AC EV Charger
What Kind Of Charging Speed You Like?
It can be selected by the range of your EV (less or more), your driving style (always drive at top speed or not), and your commute (long or short).
Why You Want To Get A Home EV Charger?
The charging station site is too far from your living area.
When getting off work, you have to wait in lines for other people to charge first.
The existing charger can not provide fast charging speed anymore.
Where To Put Your Home EV Charger?
Install the home EV charger closing to your garage door, parking slot of your own would be easier to charge multiple cars.
Is Your EV Charger Safety And Reliability ?
Make sure the charger supports your EV and keep an eye on its warranty.
