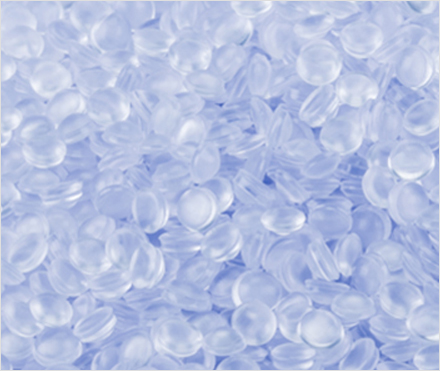

High Temperature-resistance TPO
The modification of ATP for polyolefin elastomers mainly reflects the following technical characteristics:
1. Improved Low-temperature Resistance:
In the application of cable insulant, the modification TPO of ATP can not only meet the requirement of electric performance from the insulant but also display a more broad temperature resistant character——displaying excellent mechanical properties and aging properties at the test temperature of -50℃—+125℃. So, this is the optimized insulant for wires and cables which have special requirements for low-temperature resistance.
2. Improved shrinkage resistance:
The jacket made up of TPO wire and cable insulant from ATP keeps its section surface smooth and orderly with little retraction rate after immersing in solder machine (350℃/2"). In the application of high-temperature-resistant cables (temperature≤125℃) such as charging vehicle cables (EV Cable), equipment connection cables, etc., the jacket made up of TPO wire and cable insulant from ATP takes the place of XLPE materials to meet the requirements of insulant high-temperature aging and shrinkage for nominal cables. And this can simplify the processing procedures by a large margin and improve the processing efficiency and yield.
Application: TPO thermoplastic olefin has the characteristics of small specific gravity, good impact strength, and low-temperature brittleness, and is suitable for applications in the cable industry.
Technical Data of High Temperature-resistance TPO
Technical Data Sheet |
Model |
||||
|
Material Properties |
Test Standard |
Test Condition |
Unit |
2895F-ESS-1008S |
General Characteristics |
Material Category |
- |
- |
- |
|
Appearance(Light/Semi-matte/Frosted) |
- |
- |
- |
|
|
Extrusion/Injection |
- |
- |
- |
|
|
Physical Characteristics |
Hardness |
ISO 48 |
15S |
Shore A |
97 |
Proportion |
ISO 1183 |
- |
g/cm³ |
0.93 |
|
Melt Index |
ISO 1133-1: 2011 |
190℃/2.16kg |
g/10min |
1.7 |
|
Brittle Temperature |
ISO 812 |
- |
℃ |
|
|
Mechanical Properties |
Elongation |
ISO37: 2017 |
200mm/min |
% |
590 |
Tensile Strength |
ISO37: 2017 |
200mm/min |
Mpa |
33.367 |
|
Tearing Strength |
ISO34-1: 2015 |
500mm/min |
KN/m |
|
|
Hot Air Aging |
Elongation Retention Rate |
ISO37: 2017 |
- |
% |
|
Tensile Strength Retention Rate |
ISO37: 2017 |
- |
% |
|
|
Electrical Performance |
Volume Resistivity |
ASTM D257 |
- |
Ohm-cm |
|
permittivity |
ASTM D150 |
- |
- |
|
|
Combustion Performance |
Vertical Burning Test |
UL 94 |
3.0/6.0mm |
- |
|
Oxygen Index |
ASTM D2863 |
- |
% |
|
|
Feature |
|
Extruding/Under Extruding TPO
Microbial-resistance TPO
Anti-static TPO
UV-resisitance TPO
Now the thermoplastic olefin price is affordable, if you have needs to buy thermoplastic elastomer olefin, please contact us.
If you want to know more details of thermoplastic olefin density, please visit our website.
As one of plastic compounding companies, we have different high quality thermoplastic elastomer compounds for sale, anything you need, please leave us a message.
