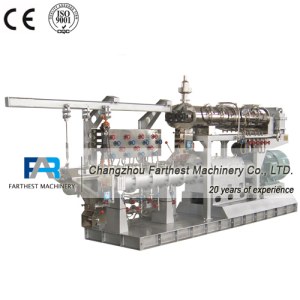

High technology floating fish feed extruder equipment
SPHS-S Series Twin-screw Steam Extruder
Feature
1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
2. The gearbox can stand strong torque and thrust up to 400hp.
3. Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
4. Fast replacing mechanism for die and screw and on-line adjustment for cutter.
5. Screw is made of special anti-wear alloy with L/D ratio up to 18: 1 that assures smoothly production for all kinds of sinking/floating feed.
Main Technical Parameters
|
Parameters Model |
Main Power (kw) |
Feeder Power (kw) |
Conditioner Power (kw) |
Cutter Power (kw) |
Capacity (t/h) |
|
SPHS95S |
55 |
1.5 |
5.5 |
3 |
0.5～1.2 |
|
SPHS98S |
75 |
1.5 |
5.5 |
3 |
0.6～1.6 |
|
SPHS118S |
90 |
1.5 |
11 |
4 |
0.8～2.0 |
|
SPHS120S |
110 |
1.5 |
11 |
4 |
1.5～2.2 |
|
SPHS145S |
132 |
1.5 |
15 |
5.5 |
2.0～4.0 |
|
SPHS148S |
160~200 |
1.5 |
15 |
5.5 |
3.0～6.0 |
|
SPHS150S |
200～315 |
2.2 |
18.5 |
5.5 |
8.0～10.0 |
