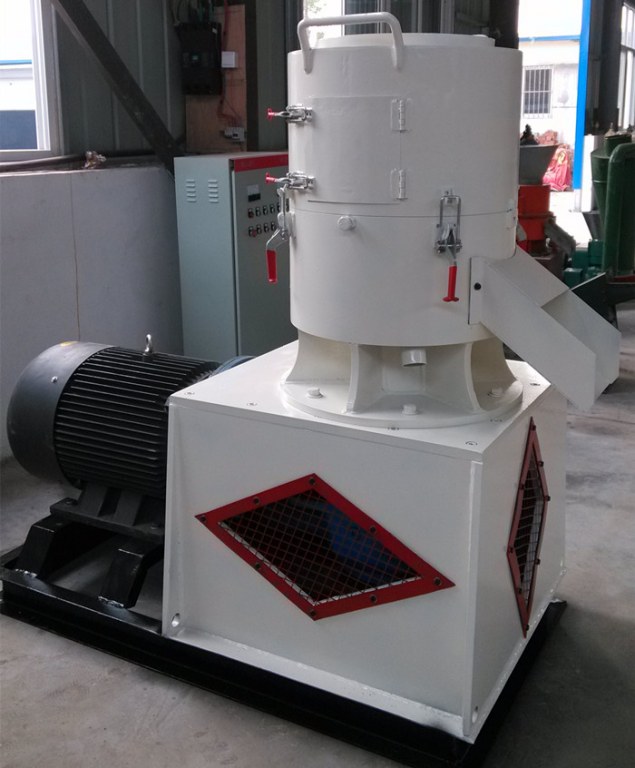

High standard flat die pellet mill
Quantité : 50 Set/Set Prix : US $ 10,000 - 25,000
Quick Details
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: HJ
- Model Number: DZLP800
- Voltage: 380v,50hz,3 phases
- Power(W): 90kw
- Dimension(L*W*H): 1.98*1.1*2.1m
- Weight: 4t
- Certification: CE & ISO9001
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: Mill Machine
- pellet moisture: 12-18%
- request pellet diameter: 4-30mm adjustable
- type of die: flat die
- capacity: 1.2-1.5T/H
- generator/motor: Simens
- color: white, red, yellow, green or as your request
- pellet temperature: 70-90°C
Packaging & Delivery
| Packaging Details: | wood package , iron sheet packing or as per your request. |
|---|---|
| Delivery Detail: | 7-15 days after receiving your deposite |
Specifications:
Hongjing Flat Die Wood Pellet Mill DZLH800
1. CE & ISO9001 Approved
2. 90kw ; 1200-1500 kg/h ; 1980*1100*2100mm
3. Factory Price $18551.00/set
4. 380V, 50Hz, 3 phases
What is the datails of our pellet mill?
1. Suitable for adhesiveness and shaping materials.
2. High standard reducer drive, high quality bearing
3. Ring die adopts quick-release anchorear type; Feed adopts frequency control of motor speed feeding
4. Press roller with high alloy wear-resistant materials refined
What is the technical parameter of the pellet mill?
|
Model |
Output(t/h) |
Power(kw) |
Dimension(mm) |
Weight(t) |
Remark |
|
DZLP360 |
0.4-0.6 |
30 |
Φ3-20 |
1.2 |
Automatic lubrication system |
|
DZLP460 |
0.6-0.8 |
37 |
Φ3-20 |
1.55 |
Automatic lubrication system |
|
DZLP560 |
0.8-1.0 |
55 |
Φ3-20 |
2 |
Automatic lubrication system |
|
DZLP800 |
1.2-1.5 |
90 |
Φ3-30 |
4 |
Self pressure regulating a |
