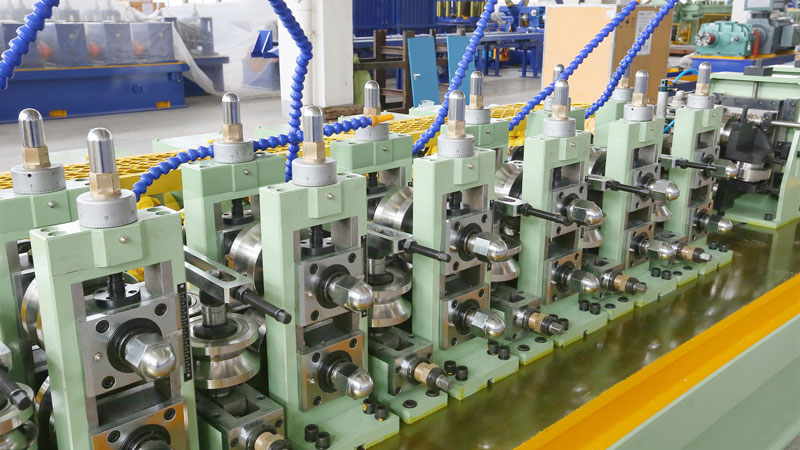

HIGH SPEED TUBE MILL LINE

High Speed Tube Mill Line is used to produce tube diameter between φ4mm to φ50mm. The top working speed of this tube mill line can reach as high as 120m/min to 130m/min.

Main Technical Parameters of HighSpeedTube Mill (For reference only, will be as requests):

A: suitable strip coils

1. Suitable material: Carbon steel coil;

Alloy Steel Coil; API5L X42-X80

(For reference only, will be as requests)

2. Suitable strip width range: 13mm-157mm

3. Wall Thickness: 0.2mm-22mm

B. Finished products

1.Pipe O. D. φ4mm-φ50mm

2.Thickness: 0.2mm-3mm

3.Square tube: 6mmx6mm-39mmx39mm, thickness: 0.3mm-3mm

Length: 6m-12m

Length tolerance: +/-3mm

C. Equipment data (for reference only)

Production speed: 120-130m/min

Direction: Left to right or right to left from operator's side(as requests by customer)

Capacity: 10,000 ton/year-15, 000 ton/year

Electricity input power: 50kW-65kW

Foundation: 40m–50m (length) x 3.8m-4m (width)

Weight: About 30ton–300ton.

Operator: 6-8 people (as size requests)

High-Speed Tube Mill Line Technical parameters

Model

Round pipe

Square pipe

Thickness

Speed

mm

mm

mm

m/min

RFT-12

Ф4-Ф12

0.2-0.5

120-130

RFT-16

Ф6-Ф16

0.2-0.8

120-130

RFT-20

Ф8-Ф20

6x6-15x15

0.3-1.0

120-130

RFT-25

Ф10-Ф25

7x7-19x19

0.3-1.5

120-130

RFT-32

Ф12-Ф32

9x9-25x25

0.5-2.0

120-130

RFT-50

Ф20-Ф50

15x15-39x39

0.8-3.0

120-130

High-Speed Tube Mill Line Applications

Finished Tubes by High-Speed Tube Mill

Specifications of High-Speed Tube Mill

Machine Condition

Fully New, A Grade quality

Size

As requests

Power Supply

220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)

Equipment Weight

About 30ton-300ton

Dimension

40m–400m (length) x 3.8m-40m (width)

LOADING SIZE

Normally need 4-30 x 40' containers

Equipment Color

normally Blue/Green/White, or as requests

Place of Origin

Zhejiang, China (Mainland)

Packing

Standard and careful export packing

For more information about how to operate roll forming machine, please feel free to contact us!

Localisation : ROOM 1010, BUILDING 1,XINYI PLAZA, NO.628, JINCHENG ROAD, XIAOSHAN, HANGZHOU, ZHEJIANG PROVINCE, P.R. CHINA, 311202 XIAOSHAN,
Personne à contacter : liu Tyler, +86 571 82686709
