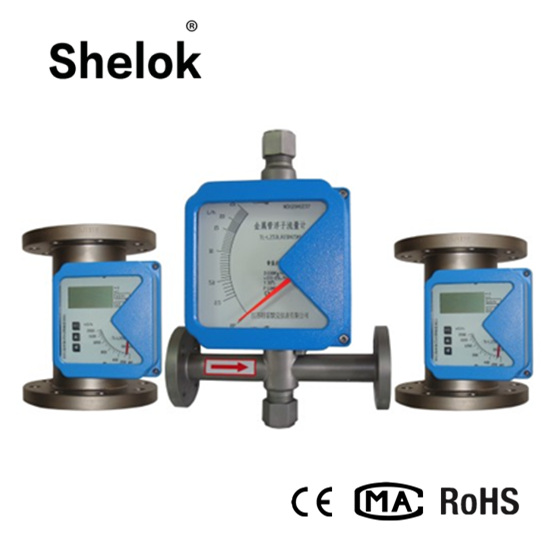

High Quality Metal Tube Rotor Flow Meter Hydraulic Rotameter
Quantité : 1 Prix : USD450
1.Description of high quality metal tube rotor flow meter hydraulic rotameter:
The low cost metal tube flow meter is composed of sensors and indicators. Combination of different ways to achieve different environmental requirements of different specifications of metal pipe flow meter.
2.Features of high quality metal tube rotor flow meter hydraulic rotameter:
·Modularly combined,maintenance-free.
·High accuracy, generally up to ± 1.5% R, ± 1.0% R.
·Non-contacting magnetic coupling structure,the spectrum signals travel well.
·LCD with backlight,duplicate rows display.
·Data backup and recovery.
·All metal construction,seismic pressure ,heat-resistant and anti-corrosion.
3.Specification of high quality metal tube rotor flow meter hydraulic rotameter:
| Specifications | |||
| Measuring range | water (20 °C) : 1-200000I / h; air (20 °C, 0.1.13Mpa); 0.03 ~ 4000m3 / h | Turndown ratio | Standard: 10: 1 ; special type: 20: 1 ; |
| Accuracy | Standard: 1.5 ; special type: 1.0 ; | Pressure Rating : | Standard : DN15-DN50 4.0Mpa; DN80-DN200 1.6Mpa; Special type : DN15-DN50 25Mpa DN80-DN200 16Mpa |
| Pressure loss | 7Kpa ~ 70Kpa | Medium temperature | Standard : -40 °C ~ 100 °C; high temperature : 100 °C ~ 450 °C; |
| Medium viscosity | DN15: n <5mPa.s (F15.1-F15.3) n <30mPa.s (F15.4-F15.8);<br /> DN25: n <30mPa.s;</td> | Ambient temperature | Remote Type : 40 °C ~ 185 °C ( LCD will not be damaged ) LCD work at -30 °C ~ 80 °C |
| Connection | Standard : DN201 standard flange ; special type: specified by the user at any standard flanges or threaded ; | Cable Interface | flameproof as 1/2NPT internal thread , other M20 `1.5 internal thread ; |
| Power supply: | Standard : 24VDC wire 4-20mA (12VCD-32VCD) Alarm type : 24VDC three-wire 4-20mA (18VCD-28VCD) AC type : 85-265VCD 50Hz; |
Battery type | 3.6V, 7.5AH Lithium battery , can be used continuously for three years ; |
| Wire | Rlmax = 50 • (-12) = 600 @ 24V | Alarm | maximum load resistance is 200, AC type : Maximum load resistance is 200 |
| Alarm output | upper or lower instantaneous flow alarm ; switch alarm ; relay output LCD : display instantaneous flow range : 0 -50000 ( available with a decimal point ) |
Protection class | IP65 |
4.Application of high quality metal tube rotor flow meter hydraulic rotameter:
The low cost metal tube rotameter can be widely used in petroleum, chemical, metallurgical, power, food, pharmaceutical, paper and other industries of liquid, gas, steam media measurement and process control.
