Heli-Coil Wire Screw Thread Inserts
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Heli-Coil Wire Screw Thread Inserts

Quantité : 200 pieces   Prix : 0.03 dollar

Description
Silver plated wire thread insert with the corresponding function of free-running or screw-locking insert, mainly lies in the silver layer surface, the main role is that the silver layer can prevent corrosion, and can be used as solid lubricants fasteners, silver tarnishes in air, but it can work under 1600 degrees, so using its high temperature resistance and lubrication properties for fasteners under high temperature, to prevent oxidation by bolts and nuts.
The materials of silver plated wire thread insert: 321, SY90 and SY750. SY90 and SY750 are high temperature alloy stainless steel base on nickel. The maximum temperature is 850 degrees, can up to 650 degrees long time.

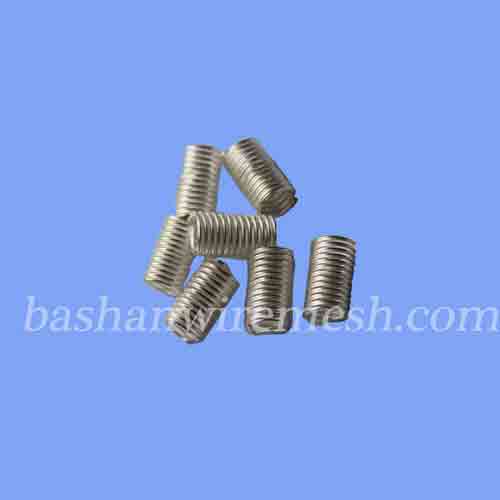

The following picture is silver plated screw-locking inserts for Military use.
Specifications: 8x1.25x10GJB5109-2002-Ag. Technical standards for the national military standard "lock" GJB5.
Workshop
1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.
2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.
3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.
We have a professional warehouse management system to ensure the safe storage of our products
Certificates
1）Passed ISO9001: 2008 quality certificate
2）Passed ISO/TS16949: 2009 certificate
3）Passed GJB9001A-2001 military quality certificate.
4）Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Packing Details
* Inner: Plastic bag
Out: Carton or wooden case or according to the weight
* Pallet / Wooden Crate.
* Customized packing.
Processing & Delivery
* Common products in 2-4 days.
* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc. 4-10days.
* Big size package is shipped by sea, 10-30days.
