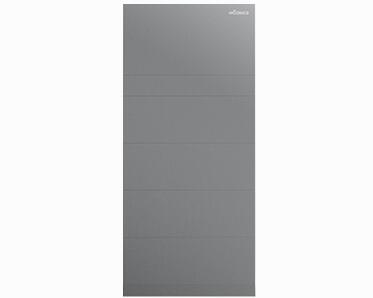

HEC-S 7600 US G2 Residential Energy Storage System
Prix : 100000-5000000
Hiconics's HEC-S 7600 US G2 is an Intelligent all-in-one domestic solar battery system (with LFP battery), especially for North America. Our G2 model has the following stengths: 200% PV oversize, 15.2 kWdc; 3 Strings MPPT, 150% Max.MPPT power; 16A Max. input current; 100% backup power with grid-tie; Built-in RGM meter; Up to 4 inverter parallel; Peak efficiency(PV-GRID): 98%; Long life & Safe LPF battery; Up to 4 battery modules stacked, 20kWh; No power or signal wire between modules
Technical Parameters of HEC-S 7600 US G2 Residential Energy Storage System
|
Model |
3.8KW |
5KW |
6.0KW |
7.6KW |
|
InPUT PV |
3800 |
5000 |
6000 |
7600 |
|
Max. recommended PV power[W] |
7600 |
10000 |
10000 |
15200 |
|
Max. DC voltage[V] |
550 |
|||
|
Norminal DC operating voltage[V] |
360 |
|||
|
Max. input current( input A/input B/input C)[A] |
A: 16/B: 16 |
A: 16/B: 16/C: 16 |
||
|
Max. short circuit current( input A/input B/input C)[A] |
A: 20/B: 20 |
A: 20/B: 20/C: 20 |
||
|
MPPT voltage range[V] |
90-500 |
|||
|
MPPT voltage range[V](full load) |
176-500 |
232-500 |
278-500 |
235-500 |
|
Start input voltage[V] |
120 |
|||
|
No. of MPP trackers |
2 |
3 |
||
|
Strings per MPP tracker |
A: 1/B: 1 |
A: 1/B: 1/C: 1 |
||
|
DC disconnection switch |
YES |
|||
|
AFCI |
YES |
|||
|
OUTPUT AC |
||||
|
Norminal AC power[VA] |
3816 |
5016 |
6000 |
7608 |
More Options
Now Hiconics belongs to Midea Industrial Technology Business Group (MITBG)
As a professional vfd manufacturer, we provide residential battery systems and the most competitive residential battery storage cost.
