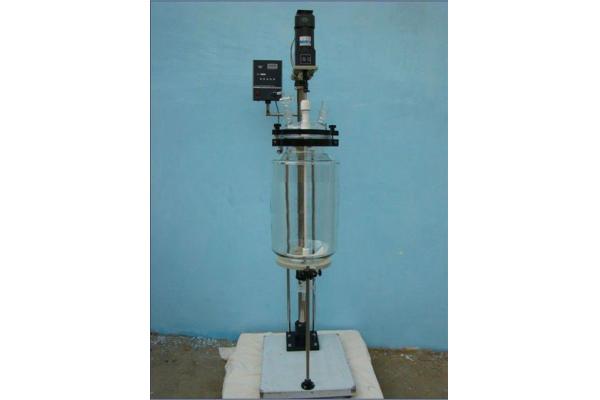

HEB-5L stainless steel Jacketed Glass Reactor
Quantité : 1 SET Prix : US $ 1-10/ Set
Detailed Product Description
Cylindrical glass reactor is idea device in synthetic chemical,biological parmaceutical,scientifical institute,etc.
Circulation liquid of hot, cold or cryogenic can be filled into the jacket of reactor. Substance reacts by stirring under normal or negative pressure in aieproof glass container. Reaction process can be watched clearly through crystal reaction flask. Jacket Glass Reactor is ideal equipment in library experiment or medium-production in moden biology and pharmcy, and is also applied in synthesizing materials in fine chemical industry.
Features in Design:
1. Integrated jacket reaction flask has big caliber with good seal and high strength.
2. Professional PTFE cover supports high speed stirring in vacuum.
3. Three standard mouths can be used for umlti-purpose according to customer needs. Standard fittingare chatging cork, thermometer tube, and reflux condenser. (Customization available for special needs)
4. More designs on safe and easy operation are applied on models of 20L and above
Technology parameters
Type |
HEB-5L |
Reaction flask |
5L |
Stirring power |
90w |
Rotation speed |
30-1300rpm |
Electrical Requirement |
220V 50Hz |
Max speed |
1300rpm |
Flask Necks |
5 pcs |
Torgue |
5000g.cm |
Inside's diameter |
200mm |
outside's diameter |
230mm |
Overall dimension |
44x32x84cm |
Basic standard components |
|
(1): HEB5-FC-307: |
Frequency-convertor for digital display 1 |
(2): HEB5-10: |
Condenser 1 |
(3): HEB5-11: |
Electric Stirrer motor power: 90W. 1 |
(4): HEB5-21: |
Lock Clamp 1 |
(5): HEB5: |
Charging Pipe 1 |
(6): HEB5-1: |
half-ring Clamp 1 |
(7) HEB5-021: |
black lock clamp 1 |
(8) HEB5-2: |
discharging Switch 1 |
(9) HEB5-99-16: |
4 Neck Lid 1 |
(10)HEB5-0 |
Screw 14 |
(11)HEB5-RH-208 |
Lock Clamp“O”2 |
(12)HEB5-5: |
support rod 4 |
(13) HEB5-RH-210 |
Support Ring“O”2 |
(14) HEB5-JR-111 |
1L Jacketed vessel 1 |
(15)HEB5-ST-101 |
Stirrer Shaft Stainless Teflon agitator 1 |
<span style="font-style: inherit; margin: 0px; outline: none 0px; padding: 0px; border: 0px none; font-family: arial, helvetica, sans-serif; |
