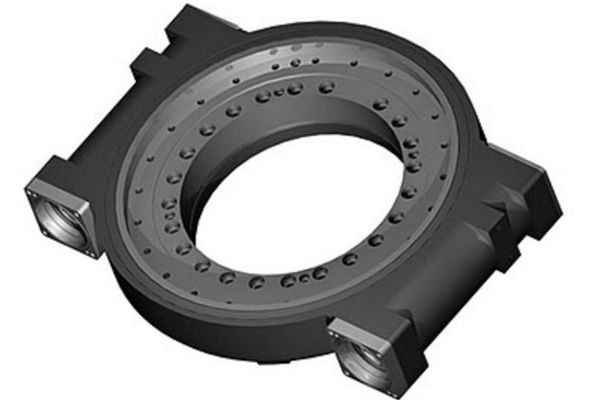

Heavy Duty Vehicle Series

The double-drive Heavy duty vehicle series can achieve 2 times the tooth contact on the single drive base, which makes heavy slewing drive can produce nearly double the output torque in the same volume and installation space, greatly improving the performance of the product, while maintaining the torque is doubled. Improvement.

The double-drive Heavy duty vehicle series can achieve 2 times the tooth contact on the single drive base, which makes it can produce nearly double the output torque in the same volume and installation space, greatly improving the performance of the product, while maintaining the torque is doubled. Improvement.

Heavy duty vehicle series rotary reducer features

Double worm drives the slew ring china at the same time, the output torque is larger, and the performance is far superior to the single-tube structure.

Flexible input interface form, convenient for customers to choose various hydraulic motor and geared motor connection input.

Supply Ability of Double Drive HSE25-2-2 Heavy Duty Vehicle Series

We can provide you with detailed technical parameters for the double cylinder, including customized requirements.

Application of Double Drive HSE25-2-2 Heavy Duty Vehicle Series

Heavy duty vehicle series products are widely used in the relative rotating parts of the mechanical field.

Drive the wheel of the module to rotate (shipyard, large structural parts).

Performence Parameters of Rotary Reducer

Output Torque

43.6 kN.m

Overturning monent

52.3 kN.m

Holding Torque

167 kN.m

Axial static load

1058 kN

Static radial rating

421 kN

Axial Dynamic load

265 kN

Gearing Ratio

82: 1

Radial dynamic load

216 kN

Tracking Precision

≤0.15°

Now the price of ball bearing turntable is affordable, if you have needs to buy heavy duty turntable bearing, please visit our website.

As one of slewing bearing manufacturers, we can provide different kinds of slewing ring drive for sale, anything you need, please leave us a message.
