HAST / Highly Accelerated Stress Test Chambers

Quantité : 34   Prix : 234 233,00 €

application:
Pressure Accelerated Aging Test Chamber (HAST Chamber) is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Highly Accelerated Stress Test / safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
technical parameters:

Model

HAST-55

Internal Dimension Φ*D (mm)

550*650

External Dimension Φ*D (mm)

1150*1650*1200

Steam Temperature Range

Steam Temperature Range: 100℃~135℃, (143℃ is optional)

Relative Pressure/ Absolute Pressure

Relative pressure: display values indicated on the pressure gauge;Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box)

Comparison Table of Temperature,Humidity,Pressure

Steam Humidity

70~100％R.H. steam humidity adjustable

Steam Pressure(Absolute Pressure)

101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)

Recursive Device

Steam in forced-circulation

Safety Protective Device

Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )

Accessories

Two layers stainless steel plate

Equipment Capacity(L)

155

Power

AC 220V(+/- 10%), 1 3 Lines ,50/60HZ;AC 380 V(+/-10%) ,3 5 Lines,50/60HZ

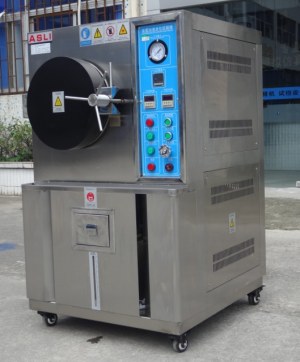

Highly Accelerated Stress Test System pictures:

If you would like to know accurate quotation of machines or more information, please comfirm with us, the price on the website just for reference! Contact information as below:
Ai Si Li (CHINA) TEST EQUIPMENT CO.,LTD
Company Add : Building C,JinHui Industrial Park,LiXin Town,East City District 523125,DongGuan City,China
Cell : 0086-769-23164266
Email : Sales8@aslitesting.com
Website : http://www.aslitesting.com

Localisation : JinHui Industrial Park,LiXin town,East, 523000 DongGuan,
Personne à contacter : Rachel Lee, 0086 769 23164266
