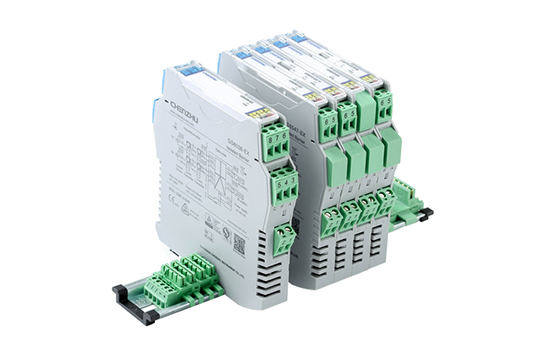

GS8500-EX Series Intrinsic Safety Barrier
Quantité : 1 million Prix : 200-2000 CNY/pc
GS8500-EX Series Intrinsic Barrier
GS8500-EX range functional safety isolated barriers are CHENZHU's hit products, which obtained the first IECEx, ATEX, DE TUV SIL, JP TIIS certifications in domestic China, offering the widest selection of products such as GS-8500 EX analog intrinsic safety analog isolator for the protection of electrical signals, meets the intrinsic safety standards for both explosive gas and dust environment, widely used in the control system of petroleum and petrochemical, railways, coal mines, and other industries.
To achieve safety automation system, you can trust CHENZHU! Do not hesitate to contact us.
GS8500-EX Series Intrinsic Safety Barrier
GS8500-EX Analogue Intrinsic Safety Barrier
GS8500-EX Analogue Intrinsic Safety Barrier Loop Power
GS8500-EX Digital Intrinsic Safety Barrier
GS8500-EX Digital Intrinsic Safety Barrier Loop Power
GS8500-EX Temperature Converter Intrinsic Safety Barrier
GS8500-EX Voltage Input Intrinsic Safety Barrier
GS8500-EX Communication Input Intrinsic Safety Barrier
GS8500-EX Frequency Converter Intrinsic Safety Barrier
What are the differences between independent powered, loop powered and output loop powered?
Independent powered
The isolated barrier requires independent 24V power supply.
Loop powered
There is no need for an external power supply. The signal acquisition loop and the power distribution loop share one loop.
Output loop powered
The output is loop powered. It outputs passive signals, which need DCS/PLC to provide external power supply.
GS8500-EX Series Intrinsic Safety Barrier Relys on safety technical standards
International certification
Invention patent
Laboratory authorized by TÜV Rheinland group
High adaptability for electromagnetic environment, compliance with EMC standard: IEC61326-3-1
GS8500-EX Series Intrinsic Safety Barrier Relys on safety technical standards
FAQ of GS8500-EX ange intrinsic safety barrier
How to calculate the conversion accuracy of the temperature digital input barrier?-
|
|
Range |
Min. Span |
Accuracy |
|
|
TC |
T |
-200℃~+400℃ |
50℃ |
0.5℃/0.1% |
|
E |
-200℃~+900℃ |
50℃ |
0.5℃/0.1% |
|
|
J |
-200℃~+1200℃ |
50℃ |
0.5℃/0.1% |
|
|
K |
-200℃~+1372℃ |
50℃ |
0.5℃/0.1% |
|
|
N |
-200℃~+1300℃ |
50℃ |
0.5℃/0.1% |
|
|
R |
-40℃~+1768℃ |
500℃ |
1.5℃/0.1% |
|
|
S |
-40℃~+1768℃ |
500℃ |
1.5℃/0.1% |
|
|
B |
+320℃~+1820℃ |
500℃ |
1.5℃/0.1% |
|
|
RTD |
Pt100 |
-200℃~+850℃ |
20℃ |
0.5℃/0.1% |
|
Cu50 |
-50℃~+150℃ |
20℃ |
0.5℃/0.1% |
|
|
Cu100 |
-50℃~+150℃ |
20℃ |
0.5℃/0.1% |
|
|
Potentiometer |
|
0kΩ~5kΩ |
|
0.1% |
|
|
0kΩ~10kΩ |
|
0.1% |
