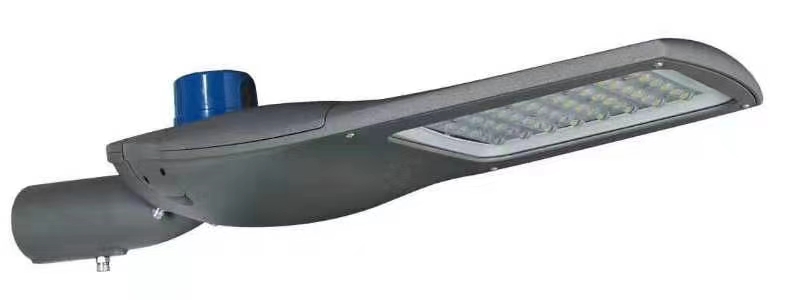

Goldmean Series LED Street Light
Goldmean Series LED Street Light
Light Source: CREE/Lumileds
Driver: Philips/Meanwell/Inventronics/Moso
Power range: 30W/40W/50W/60W/80W/100W/120W/150W/180W/200W/240W
Voltage: 90-305Vac/347-480Vac
Size: Micro/Mini/Midi/Max
Weight: 6.5kg/7.5kg/8.0kg/8.3kg
CCT: 3000K/4000K/5000K
Optical : Type II/Type III/Type IV/Type V
Efficacy: 140lm/W standard, 170lm/W optional
CRI: Ra>80
IP Rating: IP66
IK Rating: IK09
Spigot size: 25mm-76mm
Adjustable: 0-90°
Temperature: -20℃ to +55℃
Warranty: 5Years
Smart control: 0-10v dim, photo sensor, motion sensor, smart city control system
Goldmean Series LED street light series are YIBAI recently newly released most complete and most functional road lighting in the industry,
embracing the typical Europe and America solid and slim style, flexible current driving range, thermal and optical integrated modular system,
multi-options of light distribution, free tool installation and maintainence, full solution with wide range applicable installation inter-face and various control methods.
Applications
- Designed for city road, highway, alley, walkway, park, garden and country road.
Installation
- Side-entry and post-top mounting optional with ±15° tilt steps per 5°.
Housing & Finishing
- Die-cast a luminum housing with internally installed heat sink for optimum thermal performance and long lifespan.
- Corrosion resistant polyester powder coating.
- Standard color: Silver Gray.
- Customization color available.
LED & Optical System
- Utilizes high brightness LEDs, minimum CRI 80 at 4000k typically(3000k and 5000k optional).
- LM-79/TM-21 test reports in accordance with IESNA standards.
- With asymmetrical wide beam angle distributions(Type Ⅱ, Type Ⅲ and Type Ⅳ) are available for customer specific lighting tasks.
- Optic lens: polycarbonate, UV resistant.
Electrical
- Aluminum core printed circuit board.
- 220-240 Vac , 120-277 Vac, And 347-480Vac optional.
- 1-10V dimming default and DALI dimming optional.
- Multi-level surge protections designs, up to 10KV surge protection(20KV is optional).
Ratings
- CE, CB, RoHS, ENEC, IP66, IK09,TM-21,TM-79
