GLSUN 2x2 Optical Bypass Switch
Quantité : 10000 Prix : USD100.00/PCS
Product Description

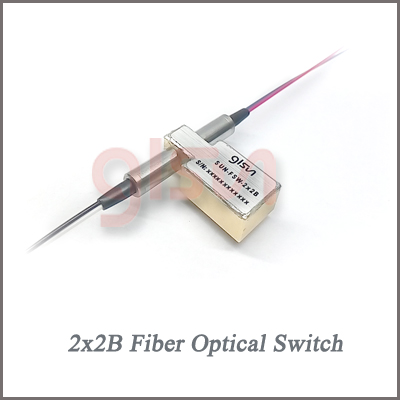

2x2B Optical Bypass Switch - Introduction
SUN-FSW-2×2B Fiber Optical Bypass Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. It is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
2x2B Optical Bypass Switch - Features Application
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
·R&D in Laboratory
·System Monitoring
·OADM
·Sensing Area
·MAN (Metropolitan Area Network)
Specification
|
2x2B Optical Bypass Switch - Specifications |
|||
|
Parameters |
Unit |
SUN-FSW-2×2B |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss 1, 2 |
dB |
Typ: 0.8 Max: 1.2 |
Typ: 0.6 Max: 0.8 |
|
Return Loss 1, 2 |
dB |
MM ≥ 30 SM ≥ 50 |
|
|
Crosstalk 1 |
dB |
MM ≥ 35 SM ≥ 55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Operating Voltage |
V |
3 or 5 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Weight |
g |
14 |
|
|
Dimension |
mm |
(L)27.0×(W)12.6×(H)8.2 ±0.2 |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
