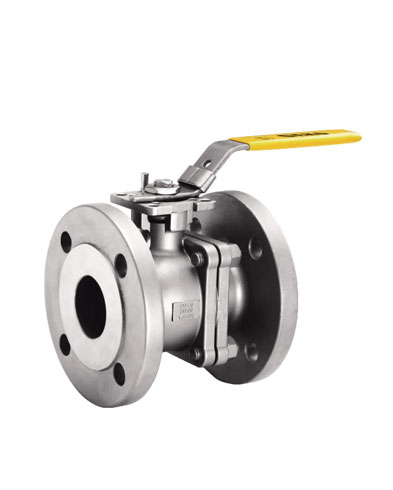

GKV-225 Ball Valve, 2 Piece,Flanged Connection, Full Port, With ISO Mounting Pad

‘Blow-out Proof Stem/ Full Port

ISO 5211 Direct Mounting Pad

Temperature Range: -20 To 180℃

Features of GKV-225 Ball Valve System, 2 Piece,Flanged Connection, Full Port, with ISO Mounting Pad

GKV-225 PN16/40

●DESIGN: EN12516-1

●FLANGE DIMENSIONS: EN 1092-1 TYPE 21 PN16/40(RF SF)

●FACE TO FACE: EN 558-1 F4/F5 (DIN 3202 F4/F5)

●TEST: EN-12266-1

GKV-225 CLASS 150# 300#

DESIGN: ANSI B16.34

FLANGE DIMENSION: ASME B16.5 CLASS150

FACE TO FACE: ASME B16.1

TEST: API-598

GKV-225 JIS-10K

●DESIGN: ANSI B16.34

●FLANGE DIMENSIONS: JIS B2238 10K

●FACE TO FACE: JIS B2002 (ASME B16.1)

●TEST: API-598

GKV-225 GB-PN16/40

●DESIGN: GB/T-12237

●FLANGE DIMENSIONS: GB/T-9113.1

●FACE TO FACE: GB/T-12221

●TEST: GB/T-13927

If you want to know more about ball valve standard, please contact us.
