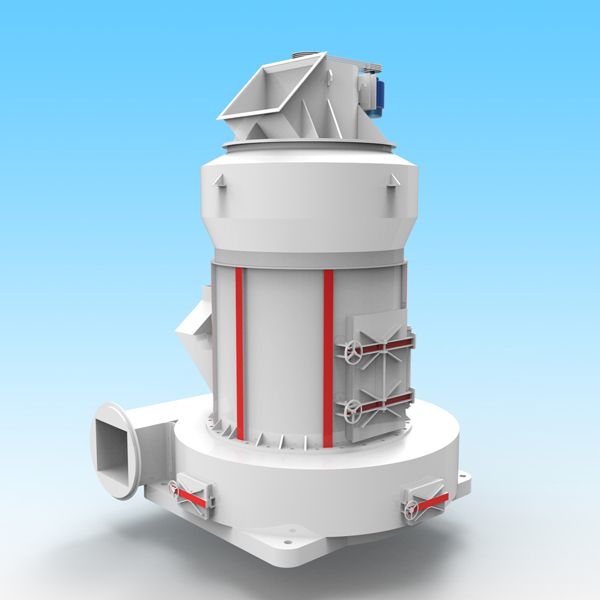

GK2150 Raymond Mill

GK2150 Raymond Mill Technical & Structural Benefits:

  • This model has high output, high-efficiency, and energy saving. It has small floor area and saves workshop.
  • The innovative design of the "maintenance-free device" for roller assembly, Refill grease every 30 days.
  • Large conveying capacity: Blower adopts high-pressure centrifugal fan to increase air volume and air pressure, so as to greatly improve the ability of pneumatic conveying.
  • Optimize inside design of the main unit, keep the roller and grinding ring abutting contact during running, improve grinding efficiency and operational reliability, and reduce the high failure rate of vertical pendulum grinding high pressure suspension mill.
  • Equipped with water cooling structure for reducer of the main unit. Reducer adopts German technology.
  • High classifying accuracy: Classifier adopts built-in large taper blade turbine classifier.
  • No need to disassemble the spare parts such as cinquefoil shelf. More convenient for maintenance.
  • Energy-conservation & Environment-protection: Equipped with pulse dust collector in surplus wind outlet, collection-efficiency is as high as 99.9% to keep workshop environmental health.
  • Automatic control for air blower valve, reduce operating labor intensity.
  • Integral installation of air blower, water cooling system ensures running efficiency.
  • Running more smoothly, low noise, energy saving.
  • Intelligent control. The one button start and stop system and fault alarm system reduce operating personnel.

Model

Max Feeding Size

Product Fineness

(mash)

Capacity

Gross Weight

Total Installed Power

GK2500

≤35mm

80-325mesh

15000-50000kg/h

66t

625kw

GK2150

≤35mm

80-325mesh

10000-40000kg/h

64t

548kw

GK1720A

≤35mm

80-325mesh

6000-25000kg/h

49t

424.5kw

GK1620A

≤30mm

80-325mesh

3000-18000kg/h

34.5t

329.5kw

GK1500

≤20mm

80-325mesh

2500-16000kg/h

31t

242kw

5R4128

≤20mm

80-325mesh

2000-14000kg/h

28.5t

220kw

5R4125

≤20mm

80-325mesh

2000-14000kg/h

28.5

202kw

GK1280

≤20mm

80-325mesh

1500-10000kg/h

19t

133.5kw

4R3220

≤20mm

80-325mesh

1000-7000kg/h

14.6t

101.5kw
