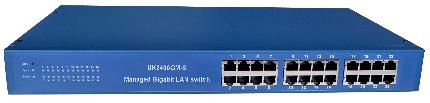

Gigabit Managed Switch UK2400GM-S
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Gigabit Managed Switch UK2400GM-S

Quantité : On stock

Gigabit managed switch UK2400GM-S is a L2/L4 Gigabit managed switch with It is also equipped with many powerful features: overall ACL, spanning tree, a storm suppression, ork, hotel and MAN tandem application.

Product features:

1. Support four-elements binding IP+MAC+RORT+VLAN, having the higher security;

2. It's unique in the industry with self-defense A OS function in the kernel of BCM chip;

3. RJ45 ports of 6000V lightning-enhanced design c tively extend the life of the product;

4. MSTP: support IEEE 802.1s standard, effectively prevent torm, and downward compatibility to STP, RSTP;
5. Storm suppression: set broadcast, multicast and DLF flow rate;
6.IGMP Snooping: IGMP version 2 (RFC 2236): IGMP of Snooping is used establishing multicast g ket overflow network, avoid wasting bandwidth;
7. Powerful ACL access control list, support ACL b ers as well as data forwarding control easily;
8. Seasoned security function: AAA certification, 802.1x certification, and defense ARP and DOS attack.;

9. Line speed filtration-store-forward mode, provi true non-blocking switching structure;

10. Support mirroring port, port aggregation, port speed limit function.

Product specification:
1. Hardware specifications

Product model

UK2400GM-S

Supported protocols

IEEE802.3、IEEE 802.3u、IEEE 802.3ad、IEEE 801.3x、IEE 02.1w、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az

Maximum frame length

16KB

VLAN

4K

MAC address

8K

Cache

4Mb

The backplane bandwidth

48Gbit

Port number

24 RJ45 ports

Network medium

1000Base-LX: using long-wavelength laser (1310nm) crossed the the maximum distance, single mode is 10-24km.
1000Base-SX: 62.5 μ m multimode fiber maximum transmission dist imum transmission distance of up to 550 meters
10Base-T: cate-3 or more UTP; (support maximum transmission distance of 200m)
100Base-TX: cate-5 UTP; (support maximum transmission distance of 100m)
1000Base-T: Cate-5 UTP or 6 UTP; (support maximum transmission distance of 100m)

Filtering and forwarding rate

10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps

Dimensions

440x280x44mm (1U19 inch standard chassis)

Use of environment

Storage temperature：-20℃～70℃；Storage humidity5％～90％Non-condensing
Operating temperature： 0℃～40℃；Operating humidity10％～90％Non-condensing

Power

Input: 90-264VAC，50-60HZ; Output: 5V/6A

Power consumption

Max.30W

2.Software specification

Safety characteristics

IP+MAC+PORT +VLAN binding （red marked is the new function）
ARP protection
DOS protection
Port protection
802.1X certification

VLAN

Port based VLAN
802.1Q VLAN

ACL access control

Standard IP
Extended IP ACL
MAC IP ACL
MAC ARP ACL

Address table

MAC binding
MAC filter

Storm control

Broadcast suppression
Multicast suppression
The inhibition of DLF
Inhibition rate

Flow control

Half duplex control based on back-pressure
Duplex frame based on PAUSE

Port mirroring

Support flow mirroring of port

Port Management

Port Statistics
Port speed
Study limitations
Port aggregation

Spanning tree

MSTP (802.1s)

Multicast management

IGMP Snooping multicast packet detection

System maintenance

Configuration file download
File upload
System reset
Log management

System management

SNMP v1/v2
RMON
TELNET
WEB interface
