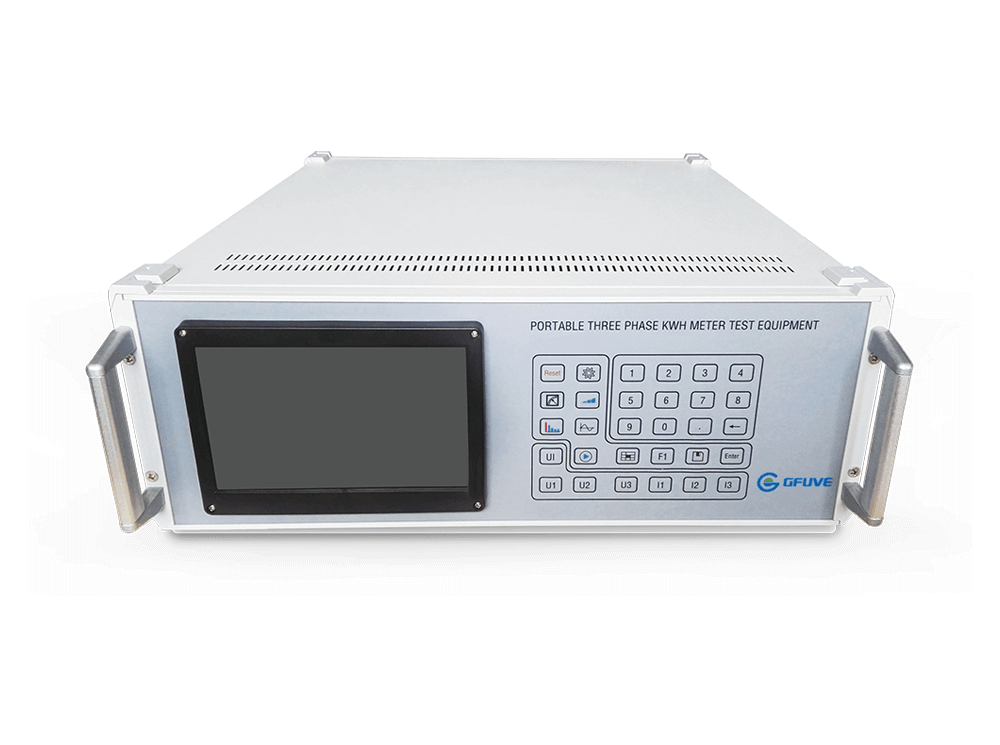

GF302D3: portable three phase energy meter test bench

Accuracy class: 0.05% 0.02%

Using on site or in the laboratory.

1.Wide measuring range 0 - 600V /0.001-120A/ Phase angle adjust from 0°to 359.999°

2.built in three phase current source and three phase reference standard of accuracy 0.02%. (reference standard and current source integrated)

3.Automatic operation without need of an external PC

4.7 inch TFT touch screen

5.User friendly menu guided operation.Vector diagram display and phase sequence indication on integrated colored screen. Easy verification and analysis of meter installations

6.measuring the distortion factor and display vector diagram

7.Especially configured USB stick for storage of customer data.

With RS232 and USB2.0 port (18kg; Degree of protection: IP20)

8. Predefined multiple load points. Verification of the load conditions on metering installation;Programmable many kinds of testing energy meter schemes;

9.Harmonic analysis for voltage and current up to the 63rd harmonics
