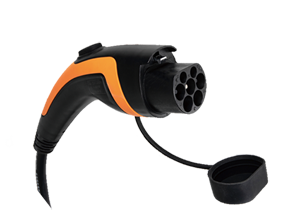

GB/T EV Charging Cable
Prix : 80USD~500USD
Mechanical Properties
Mechanical life: no-load plug>10000times
Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force: <100N</span>
Electrical Performance
Rated current: 10A/16A/32A/63A
Rated voltage: 250V/440V/
Insulation resistance: >1000MΩ(DC500V)
Pins temperature: <50K</span>
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Plug bush: copper alloy, silver plating+Top thermoplastics
Environmental Performance
Temperature: -30℃~+50℃
GBT ev charger Features
- Conform to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in china, correctly and effectively with high compatibility.
- Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent direct contact with the hand. The customer is able to install the indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent stealing.
- Have one or two PTC (PT100) thermistor (can match with NTC or Temperature control switch)
- XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wears resistance of the cable. The best material in the market at present conforms to the latest European Union standards.
- Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even in bad weather or special circumstances.
- Adopted double color coating technology, custom color accepted (the regular color orange, blue, green, gray, white)
- Keep the laser logo space for customers. Provide OEM/ODM service to help customers expand the market easier.
Application of GBT charging Cable
Apply to Vehicle
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV
Application in area
Commercial EV Charging/Workplace EV Charging, Hotel EV Charging, Home/Residential EV Charging, Public EV charging
AG ELECTRICAL GBT EV Charger cable acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, GB/T20234.2-2015
GBT EV Charger Cable Parameter
Product Type |
EV Charging Cable |
Rated Current |
10A/16A/32A/63A |
Rated Voltage |
250V, 440V |
Phase |
One Phase/Single Phase,Three Phase |
Cable Specification |
H07BZ5-F3X2.5mm²+2x0.75mm² |
H07BZ5-F5X6mm²+4x0.75(p2)mm² |
|
H07BZ5-F3X6mm²+2x0.75mm² |
|
H07BZ5-F5X16mm²+4x0.75(p2)mm² |
|
H07BZ5-F5X2.5mm²+2x0.75mm² |
|
Length |
Regular 5m, custom length accepted |
Color |
orange, blue, green, gray, white, custom color accepted |
Warranty |
12 months |
Certificate |
GBT |
Packaging Details |
Standard export wooden case or carton. Or as customer requirements |
Delivery Time (days) |
Within 15days, if quantity >500, to be negotiated |
As one of the electric vehicle charging equipment manufacturers, AG ELECTRICAL has strong confidence on the EV charging Components from quality perspective.
