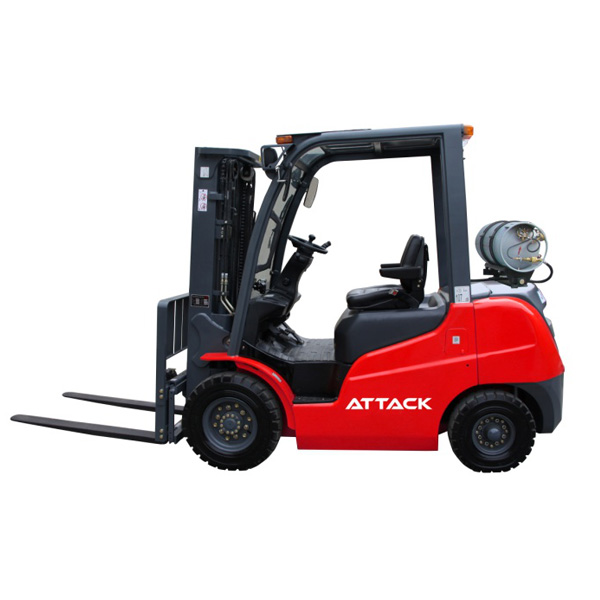

Gasoline & LPG Forklift
Product Features
Powerful Engine And Trasmission System
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine.This combination made the truck powerful and reliable.
Strict Environment Protection Design
We applied a lot of strict environment friendly designs on our Gasoline and LPG Series products. All these measures efficiently protect the user and the improve the environment.
Super Character
Attack LPG gasoline forklift truck has super advantage in compatibility by using IMPOC Converter system. The strong point lies in that we imported the whole Converter system was integrated in one unit and passed the UL certificate.
Large Volume Filter System
Equipped with filter system with Chinese speciality -more impurity in the gas. VFF30 has large filtering face, higher filtering precision, lower inlet air pressure. It also equipped with vacuum switch off valve to cut off the gas supply.
Easy Maintenance
The 2.0-2.5T Gasoline/LPG articulated fork truck is easy and convenient for maintenance. It is not necessary to install bolts on the front or rear baseboard. Therefore, it is easy to disassemble even without any tool.
For more information, pls contact us by mail : sales@attack-forklift.com
Measurements and Technical Data
|
SPECIFICATION |
Item |
CPQY20T |
CPQY25T |
|
|
Load capacity |
kg |
2000 |
2500 |
|
|
Load center |
mm |
500 |
||
|
DIMENSIONS |
Max. lifting height(VM300) |
mm |
3000 |
|
|
Free lift(VM300) |
mm |
160 |
||
|
Fork size (L×W×T) |
mm |
1070*122*40 |
||
|
Overall length(without fork) |
mm |
2460 |
2530 |
|
|
Total width |
mm |
1150 |
||
|
Mast height (fork lowering) |
mm |
1995 |
||
|
Overall height fork raised |
mm |
4030 |
||
|
Height to head guard |
mm |
2120 |
||
|
Truck weight |
kg |
3240 |
3580 |
|
|
TIRES |
front/rear |
|
2/2 |
|
|
front axle |
|
7.00-12-12PR |
||
|
rear axle |
|
6.00-9-10PR |
||
|
ENGINE |
Model |
|
NISSAN K21 |
|
|
Rated power |
kw/rpm |
31.2/2250 |
||
|
Rated torque |
Nm/rpm |
144/1600 |
||
|
Number of cylinders |
|
4 |
||
|
Dislacement |
L |
2.065. |
||
