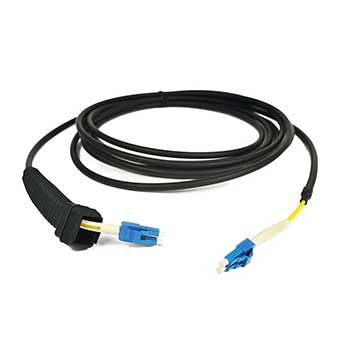

FULLX Outdoor Cable Assembly
Open bulkhead for easy access to SFP. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof, and corrosion-resistant. The plug has a tolerance-free design, free-floating on Z-axis. The material in the jumper cable is all-weather and UV-resistant. Mechanical performance IEC 61754-20 standard. RoHS and REACH materials are compliant. 100% Compatible with FullAXS Connectors and has site technical features.
Parameters of FULLX Outdoor Cable Assembly
Item |
Parameter |
|
Single Mode |
Multimode |
|
Insertion Loss |
Typical value≤0.15dB |
Typical value≤0.15dB |
Maximum≤0.30dB |
Maximum≤0.30dB |
|
Return Loss |
≥60dB (APC) |
≥30dB (UPC) |
≥50dB (UPC) |
||
Durability |
500 times a plug |
|
Operation Temperature |
-40 to + 85℃ |
Connector Types of FULLX Outdoor Cable Assembly
Type |
Reference |
Note |
|
LC |
IEC 61754-20 |
Single mode duplex |
APC: Green connectors , Green boots |
UPC: Blue connectors , White boots |
|||
Multimode duplex |
UPC: Grey connectors , White boots |
Features
1. Open bulkhead for easy access to SFP.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. IP67 water, dust proof and corrosion resistant.
5. Plug has tolerance free design, free floating on Z-axis.
6. The material in the jumpel cable are all-weather and UV-resistan.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant .
9. 100% Compatible with FullAXS Connectors and has site tehnical features.
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Now the price of preterminated fiber optic assemblies is reasonable, if you have needs, please contact us.
As one of fiber optic companies, we will do our best to meet all the needs of customers.
If you want to know more types of optical fiber communication systems, please leave us a message.
