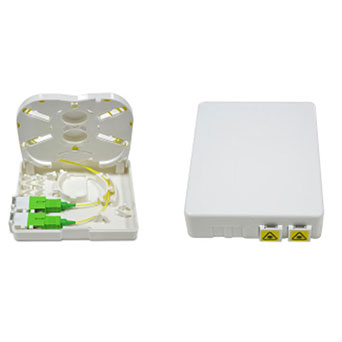

FTTH-016 Optical Fiber Panel
Support termination, splicing, and storage for fiber optic cable systems. Suitable for two adapters SC or two adapters LC configuration. Compatible with G.657A1. Compact structure and perfect fiber management. Engineered fiber routing protects the bend radius through the unit to ensure signal integrity. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
Specifications of FTTH-016 Optical Fiber Panel
Parameter |
Value |
Remark |
Model |
FTTH-016 |
|
Outside Dimension (mm) |
80*100*23 |
|
Material |
ABS |
|
Color |
White |
|
Storage of Fibers |
G.657 |
|
Splice Capacity |
2Fiber |
|
Splice Method |
Fusion Splice |
1.0*40mm Sleeve |
Adapter Type and Count |
2 SC/SX or 2 LC/DX |
|
Input Cable |
3mm or Figure 8 (2*3mm) |
From Side or Bottom |
Application of FTTH-016 Optical Fiber Panel
The FTTH-16 is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
Features of FTTH-016 Optical Fiber Panel
Support termination, splicing and storage for fiber optic cable systems.
Suitable for two adapters SC or two adapters LC configuration.
Compatible with G.657A1.
Compact structure and perfect fiber management .
Engineered fiber routing protect bend radius through the unit to ensure signal integrity.
Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
We can offer sorts of fiber optic box outdoor for sale, and the price of ftth outdoor box is reasonable, if you have needs to buy outdoor optical distribution box, please contact us.
As an optical communication company, we will do our best to meet all the needs of customers.
If you want to know more types of optical communication devices, please visit our website.
