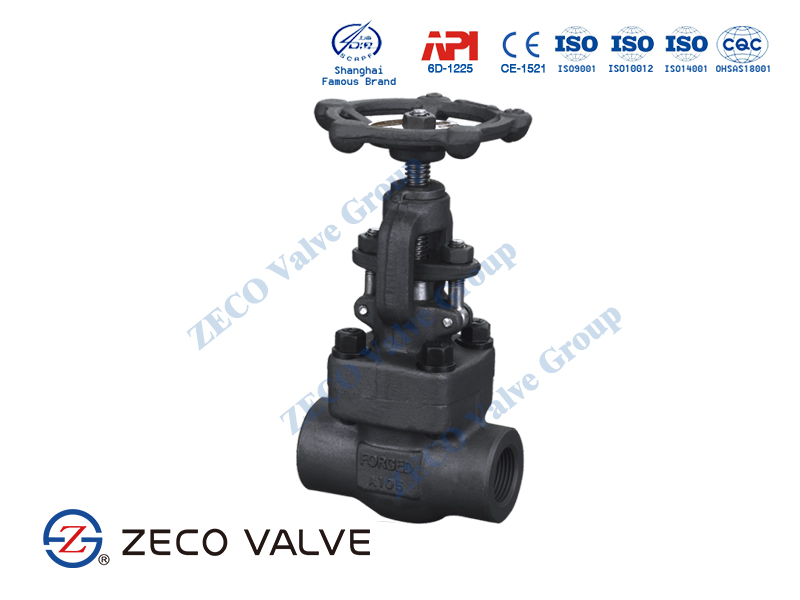

Forged Steel Gate Valve
Quantité : 500000 Pie Prix : US $1 - 3,000 / Set
Categories: Forged Steel Gate Valve, Gate Valve
Tag: OS&Y Valve
Description
ZECO manufacturing capabilities for API 602 Forged Gate valves include 1/2”-2”, ANSI Pressure class 150#-2500#. Materials of construction include Carbon Steel, Stainless Steel, Alloy 20, and other exotic materials.
Table of Contents
What is a Forged Steel Gate Valve China?
Why use Forged Steel Gate Valves?
Features of Forged Steel Gate Valve
Optional Features of Forged Steel Gate Valves
Applications of Forged Steel Gate Valve
Product Details of Forged Steel Gate Valve
What is a Forged Steel Gate Valve?
Forged gate valve is manufactured from finest quality components and under the firm direction of experienced quality controllers. These are engineered using best quality components and following international industrial standard.
The forged steel sw gate valve is designed for API602 and has an elevated stem outer screw and yoke. Dedicated for both flow directions isolation.
Why use Forged Steel Gate Valves?
Forged gate valves are great for process liquids in pipelines. These forged gate valves provide a favorable tight shutdown both in horizontal or vertical situation.
Forged gate valves also offer a small amount of control and are used to throttle steam, gas or liquids. Easy to operate and the preferred choice over ball valves by engineers to isolate trapping stations.
Features of Forged Steel Gate Valve
OS&Y, Rising Stem
Solid Wedge
Graphite Packing and Gasket
Two Piece self aligning packing gland
Bolted bonnet with spiral-wound gasket
Integral backseat
Optional Features of Forged Steel Gate Valves
Full Port or Regular Port
Extended Stem or Below Seal
Welded Bonnet or Pressure Seal Bonnet
Locking Device upon request
Manufacturing to NACE MR0175 upon request
Low Fugitive Emission
Applications of Forged Steel Gate Valve
Turbine room
Isolation
Condensate Lines
Before expensive plant equipment Oil burner lines
Boiler Plant fuel line Recycling facilities Chemical industry Steam Plant Hospitals, schools and HVAC
Product Details of Forged Steel Gate Valve
|
ANSI Class / Rating |
800#, 1500# , 2500# |
|
Design Standard |
API 602 |
|
Testing Standard |
API 598 |
|
Size |
1/2″ -2″ |
|
Materials |
Body : A105, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim : 13 % Cr, Stellite etc |
|
Ends |
Screwed Ends (NPT) to ANSI/ASME B1.20.1 Socket weld Ends to ASME B16.11 Butt weld Ends to ASME B16.25 End Flange: ANSI B16.5 |
|
Operation |
Mannual, Electric |
|
Ports |
Standard & Full Port |
As a china valve supplier, we will do our best to meet all the needs of customers.
Personne à contacter : Zhao Jerry, 86 21 59599008
