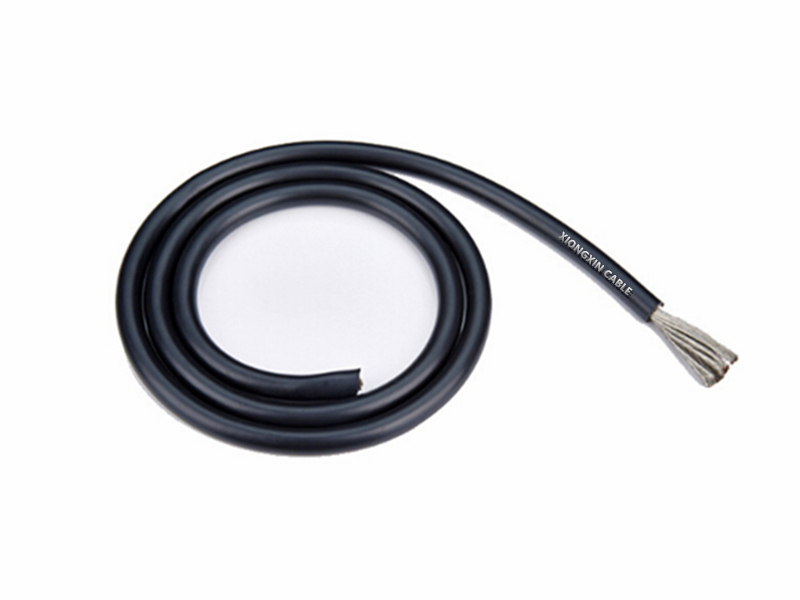

FLEXIBLE SILICONE WIRE

Flexible silicone wire is stranded 0.08mm copper conductor that comes with extruded Silicone jacket which is a thermoset material.

One of the obvious benefits for our wire and cable is the flexibility. The combination of silicone-rubber and the 0.08mm / 0.06mm OFC or Tinned Copper conductor yields the most flexible wire construction. This type of wire is ideal with applications where routing a wire through a tight space is required such as, box builds, equipment, or handheld devices and has excellent weather-ability. 1/0AWG ~ 4AWG can be customized, in accordance with the OEM's specifications.

The standard temperature range is -60°C to 200°C. In most applications, it may be heated from 180 to 200°C for a year, and is also very flexible at extreme low temperatures (stiffening temperature of approximately -115°C). Compared to Thermoplastic material (like: PVC), silicone insulation will not melt when exposed to high temperature. If the insulation melts, this may cause a short circuit which is very dangerous.

Features of Flexible Silicone Wire:

Rated Temperature: -60℃~+200℃

Rated Voltage: 600 Vac

Fire Resistance: None ( VW-1 & CSA FT2 optional )

Conductor: 30 AWG - 2 AWG, 0.08mm copper stranded.

Insulation: Extruded Silicone Rubber

RoHS & REACH compliance

Resistant to acids, alkalis, chemicals.

Use: Internal wiring.

SHONSIN Cable provides 6AWG ~ 30AWG flexible silicone coated wire with stranded 0.08mm tinned copper conductor from stock allowing for quick turnaround time and measurable cost savings. You can refer to the table below for the specification sheet of soft silicone wire:

Cable Type

Conductor

Insulator

Size

Construction

Cross Section

Diameter

Thickness

Overall Diameter

AWG

No.

Copper(Φmm)

(mm²)

(mm)

(mm)

(mm)

Flexible
Silicone Wire

6

3200

0.08

16.08

5.23

1.54

8.3

8

1650

0.08

8.29

3.75

1.27

6.3

10

1050

0.08

5.28

2.99

1.25

5.5

12

680

0.08

3.42

2.41

1.05

4.5

13

500

0.08

2.51

2.07

0.97

4.0

14

400

0.08

2.01

1.85

0.83

3.5

16

252

0.08

1.27

1.47

0.77

3.0

18

150

0.08

0.75

1.13

0.58

2.3

20

100

0.08

0.50

0.92

0.44

1.8

22

60

0.08

0.30

0.72

0.49

1.7

24

40

0.08

0.20

0.58

0.51

1.6

26

30

0.08

0.15

0.51

0.50

1.5

28

19

0.08

0.10

0.40

0.34

1.08

30

11

0.08

0.06

0.31

0.25

0.8

Shonsin Electronics Co., Ltd is a professional custom cable manufacturers, we provide silicone flexible cable, silicone flex cable, 12 gauge flexible wire, cable custom, bulk hook up wire, automotive wire and etc. Want to know more? Contact us now.

Localisation : No.33 HuMen Town, DongGuan City, China, 523900 HuMen,
Personne à contacter : liu Deven, 0769 82883226
