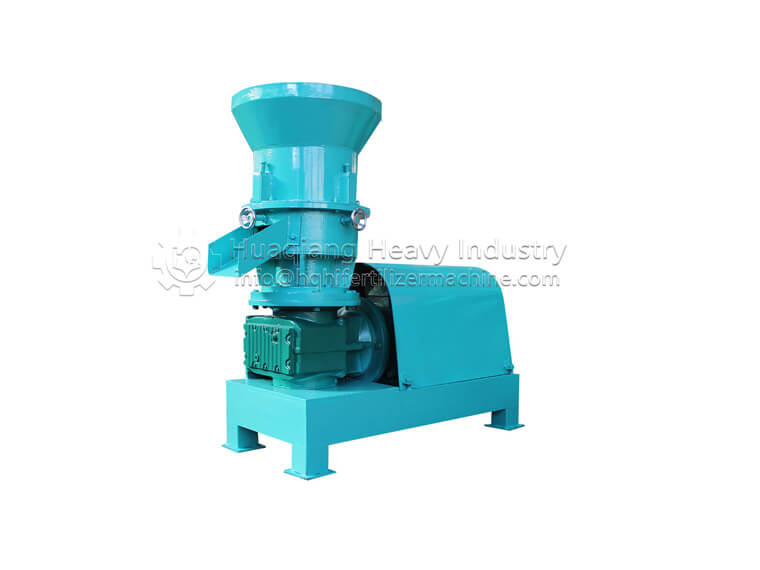

Flat Die Organic Fertilizer Pellet Mill
Flat Die Pellet Mill belong of organic fertilizer pelletizer, which is a kind of bio organic fertilizer production equipment, used in organic fertilizer, compound fertilizer and feeding processing industry.
In organic fertilizer production equipment, it can direct burdening to work out cylindrical grain, and save a lot of energy. Organic fertilizer enters the granulation chamber vertically by the gravity of the raw material itself. The pressure roller and the flat die are vertically moved, thereby avoiding the wear of the high-speed rotation of the mold and feeding uniformly.
Flat die pellet mill makes the material into strip-shaped particles by mechanical extrusion. Template is one of the most important parts in flat die pellet mill. The structure of template directly affects the shape of organic fertilizer particles. Organic fertilizer material is squeezed into the through hole of the template by roller and extruded from the through hole of the die pole after compaction. The shape of the through hole of the template directly affects the shape of the organic fertilizer particles. If you need a variety of shapes of the organic fertilizer particles, you can choose to design a number of templates, and change the template when you need to, you can produce the organic fertilizer particles with the required shapes. Template through-hole is easy to be blocked by materials, and for some highly corrosive organic fertilizer materials, the template is also easy to be corroded until failure. Therefore, when the granulation is finished, the template should be carefully cleaned and maintained to increase the service life of the template.
Parameter
| Model | KP-150c | KP-250c | KP-300c | KP-350c | KP-400c |
| Capacity (t/h) | 0.08-0.1 | 0.5-0.7 | 0.8-1.0 | 1.1-1.8 | 1.8-2.5 |
| Granulation Rate(%) | >95 | >95 | >95 | >95 | >95 |
| Pellets Temperature(℃) | <30</span> | <30</span> | <30</span> | <30</span> | <30</span> |
| Power(kW) | 7.5 | 11 | 15 | 18.5 | 22 |
We developed and produced the suitable fertilizer granulator machine, drying equipment, screener machine, batching system, and full set of organic fertilizer equipment. If you are interested in any fertilizer equipment, please contact us.
