Flangeless Fittings
Nanjing Runze Fluid Control Equipment Co., Ltd. founded in 2014, was born a high-tech manufacturer engaged in R&D, production, marketing, and service for microfluidic components including peristaltic pump, China syringe pump, piston pump, multiport valve, tubing, plastic fittings, which are key parts in environmental analysis, laboratory, medical device, bio-pharmaceuticals, petrochemical engineering, food, and beverage. Based on stable development and constant pursue of high-level cooperation on safety, quality, reliability, and innovation, RUNZE FLUID has obtained I S O 9 0 0 1 certification, 32 invention patents, and CE RoHS FDA certificates to enhance our service capabilities.

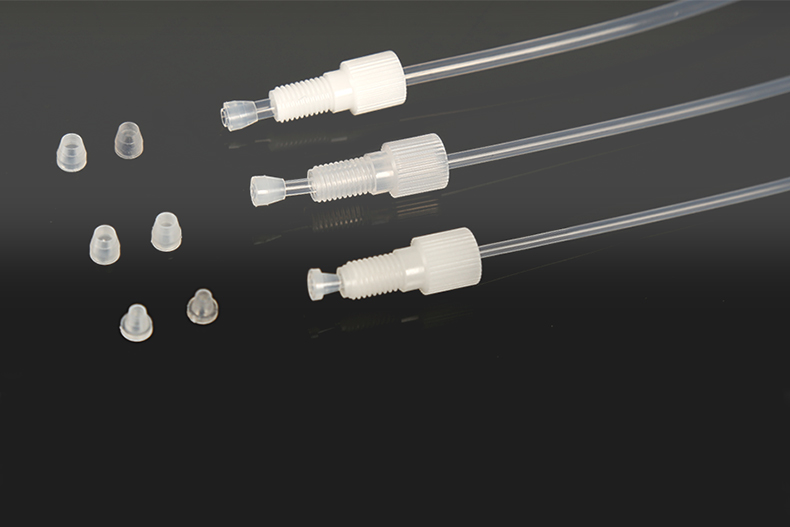

Flangeless Fittings benefits a lot for low pressure and gastight removable systems which comes with a nut and a ferrule as a unit set to connect rigid tubing of outer diameter 1.6/2.0/2.5/3.0/3.175/3.2mm into a same thread receiving port, it is very convenient to use by hand tightened without any tools and easy to mounting into fluid systems.
Specification of Flangeless Fittings
|
Model No. |
Flangeless Nut |
Ferrule Size |
Tubing OD (mm) |
||||
|
B-611 |
WF10A |
YE-020 / YE-016 |
2.0 1.6(1/16") |
||||
|
B-612 |
WF03G |
YE-020 / YE-016 |
|||||
|
B-613 |
WF08BL |
YE-020 / YE-016 |
|||||
|
B-614 |
WF08B |
YE-020 / YE-016 |
|||||
|
B-615 |
WF05EL |
YE-020 / YE-016 |
|||||
|
B-616 |
WF05E |
YE-020 / YE-016 |
|||||
|
B-617 |
WF06CL |
YE-020 / YE-016 |
|||||
|
B-618 |
WF06C |
YE-020 / YE-016 |
|||||
|
Model No. |
Flangeless Nut |
Ferrule Size |
Tubing OD (mm) |
||||
|
B-619 |
WD10A |
YC-032 / YC-030 / YC-025 |
3.2 (1/8") 3.0 2.5 |
||||
|
B-620 |
WD03G |
YC-032 / YC-030 / YC-025 |
|||||
|
B-621 |
WD08BL |
YC-032 / YC-030 / YC-025 |
|||||
|
B-622 |
WD08B |
YC-032 / YC-030 / YC-025 |
|||||
|
B-623 |
WD05EL |
YC-032 / YC-030 / YC-025 |
|||||
|
B-624 |
WD05E |
YC-032 / YC-030 / YC-025 |
|||||
|
B-625 |
WD06CL |
YC-032 / YC-030 / YC-025 |
|||||
|
B-626 |
WD06C |
YC-032 / YC-030 / YC-025 |
|||||
Dimension (unit: mm)
