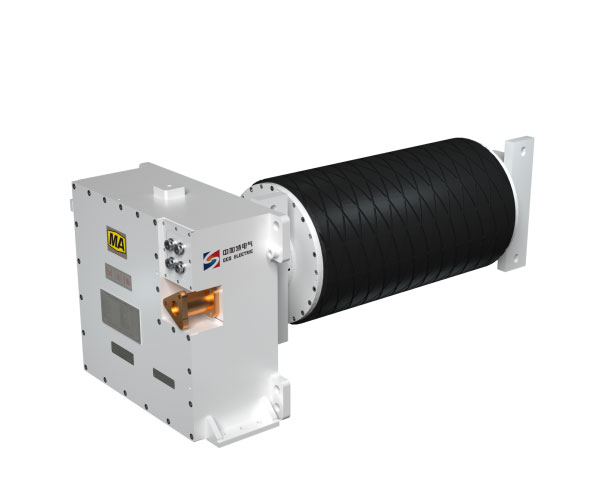

Flameproof Permanent Magnet Motorized Pulley

Permanent magnet AC synchronous motor is a further development of permanent magnet direct drive system, which integrates permanent magnet AC synchronous motor with belt conveyor drive drum and truly realizes mechatronics. The VFD compatible motor not only inherits the advantages of a permanent magnet direct drive system, but also has the characteristics of further eliminating low-speed coupling, occupying very little space, convenient installation, and construction, etc..

Besides this kind of permanent magnet AC synchronous motor, we also have other high-quality vfd for synchronous motor for sale.

What is a Permanent Magnet Synchronous Motor?

Permanent magnet synchronous motor is actually a kind of AC motor, its stator operation is three phase difference AC, and the rotor is permanent magnet. But the greatest advantage of this motor is that AC energy is provided by DC, which can accurately control the motor and solve the life problem caused by brushes.

Permanent Magnet Synchronous Motor Theory

Permanent magnet synchronous motor is mainly composed of rotor, end cover and stator. The stator structure of permanent magnet synchronous motor is very similar to that of ordinary induction motor, The biggest difference between rotor structure and asynchronous motor is that high-quality permanent magnet poles are placed on the rotor. According to the different positions of permanent magnets placed on the rotor, permanent magnet synchronous motor is usually divided into surface rotor structure and built-in rotor structure.

Permanent Magnet Synchronous Motor Control

The asynchronous start-up process of permanent magnet synchronous motor can be regarded as steady-state asynchronous operation at different speeds. During the start-up process, when the stator winding is fed with three-phase symmetrical alternating current of frequency, the air gap magnetic field generated rotates at synchronous speed, and the alternating current of frequency is induced in the rotor starting squirrel cage winding.

Features of the Permanent Magnet Ac Synchronous Motor

The outer rotor structure of permanent magnet ac synchronous motor has no reducer mechanism inside, the permanent magnet synchronous electric roller shaft is stationary and the outer rotor rotates when working;

The outer rotor permanent magnet is embedded and installed, which effectively protects the permanent magnet, has no risk of falling off, and has high reliability;

The low-speed coupling is omitted, and the transmission efficiency is higher;

The permanent magnet ac synchronous motor is a ceramic encapsulation with good wear resistance.

Advantages of Permanent Magnet Synchronous Motor

The advantages of permanent magnet synchronous motor are as follows:

Permanent magnet synchronous motor itself has high power efficiency and high power factor;

Permanent magnet synchronous motor has little heat, so the motor cooling system has simple structure, small volume and low noise;

The system adopts totally enclosed structure, no transmission gear wear, no transmission gear noise, no lubricating oil and no maintenance;

The permissible overload current of permanent magnet synchronous motor is large and the reliability is significantly improved;

Application of Permanent Magnet Synchronous Motor

Permanent magnet ac synchronous motor is used on belt conveyors. It is widely used in waste rock recovery in concentrator, steel slag treatment in steel mill, iron removal from raw materials in cement plant, power plant, coal, port and building materials industry

As a power control equipment company, we can offer kinds of related products for sale, anything you need, please leave us a message.
