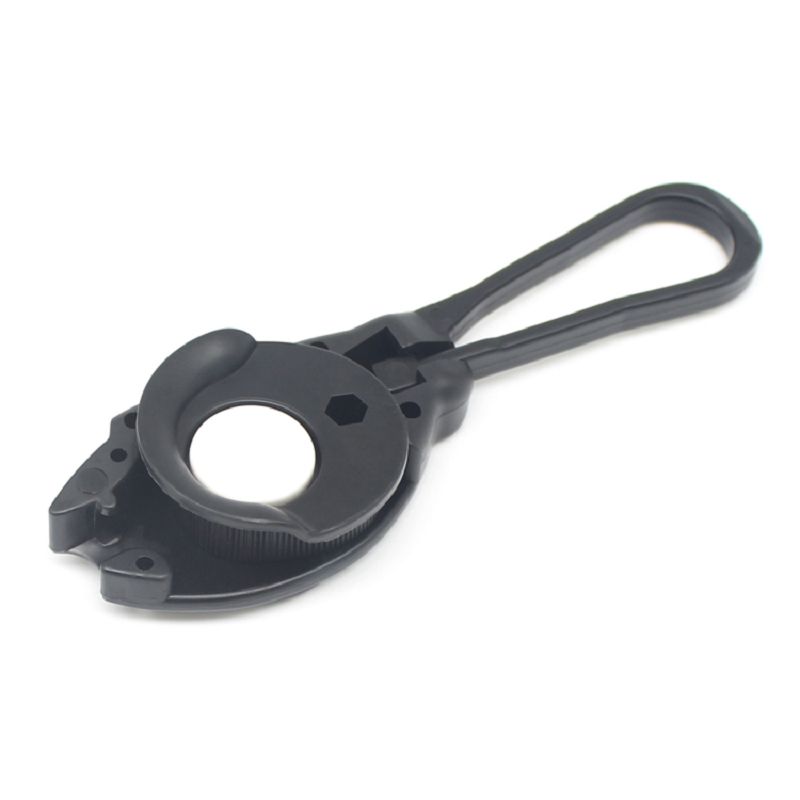

Fish-02 Fiber Optic Drop Cable Clamp
FISH-02 series drop fiber optic cable clamps fish are tension clamps for FTTH drop cable.
Fish FTTH fiber optic clamps, can be used in anchoring, turning, suspension optical fiber cable routes. Without suspension wire (in case of fiber optics diameter is 3.3mm*2.0mm): 2turns. With suspension wire (in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.
As one of the professional optical fibre manufacturing companies, TUOLIMA can customize the FTTH Drop Flat Fiber Optic Cable Clamps according to your requirements.
Details of Fish-02 Fiber Optic Drop Cable Clamp
All the fish tension clamp assemblies passed the tensile tests and temperature-cycling test;
Good anti-corrosion performance;
Fiberglass reinforced plastic and stainless steel;
Use with YK and Fish type;
Can be used in anchoring, turning, suspension optical fiber cable routes.
Specification of Fish-02 Fiber Drop Cable Clamp
|
Code |
Material |
Round Cable Size |
Material |
|
|
Fish-02 Drop Cable Clamp |
Alloy for anchor body; 201 stainless steel for wire |
3-7mm |
SS Wire Bail Alloy for anchor body; 201 stainless steel for wire |
|
|
Weight |
Dimension |
Application |
Weight |
Dimension |
|
26.2g |
126.5mm*40mm*20mm (L*W*D) |
Tension Clamp for figure 8 cable |
26.2g |
126.5mm*40mm*20mm(L*W*D) |
Packing and Comments of Fish-02 Fiber Optic Drop Cable Clamp
|
Package contents |
Fish-02 customized package 500pcs/ctn |
|
Package dimensions (W*H*D) |
38*30*30cm |
|
Package material |
Standard carton for sea shipping or air express |
|
Weight |
13.6kgs |
