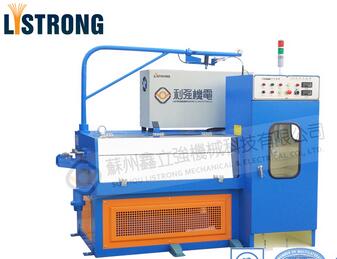

Fine wire drawing machine
Quantité : 10
Inlet diameter(MM): 0.6-1.4
Outlet diameter (MM): 0.1-0.5
Max. speed(MPM): 2200
Max. number of drawing dies: 22
Mechanical reduction ratio: 15%
Fixed-speed capstan reduction ratio: 8%
Drawing capstan: Ceramic coated
Max. capstan dia.(MM): 242
Fixed-speed capstan dia.(MM): Φ207
Frame: Cast in iron
Main machine power: 15KW
Take-up power: 3.7KW
Correction system: Automatically control
Dynamic control: Double frequency converters control
Transmission method: Timing belt+ flat belt
Pay-off method: Over-head
Traversing method: Flat belt + Synchronous motor
Tension control: Weight balance by swing arm
Lubrication system of drawing: Spray type
Take-up bobbin size(MM): 300
Take-up capacity(KG): 50-60
Bobbin loading & unloading: Shaft type
Brake: Electromagnetic brake
Machine dimension(MM): 2300*1600*1900
Machine weight(KG): 2000
Personne à contacter : Liu Erica, +8651266731698
Bonne affaire : acheter au vendeur
