Fiber Optic Terminal Box

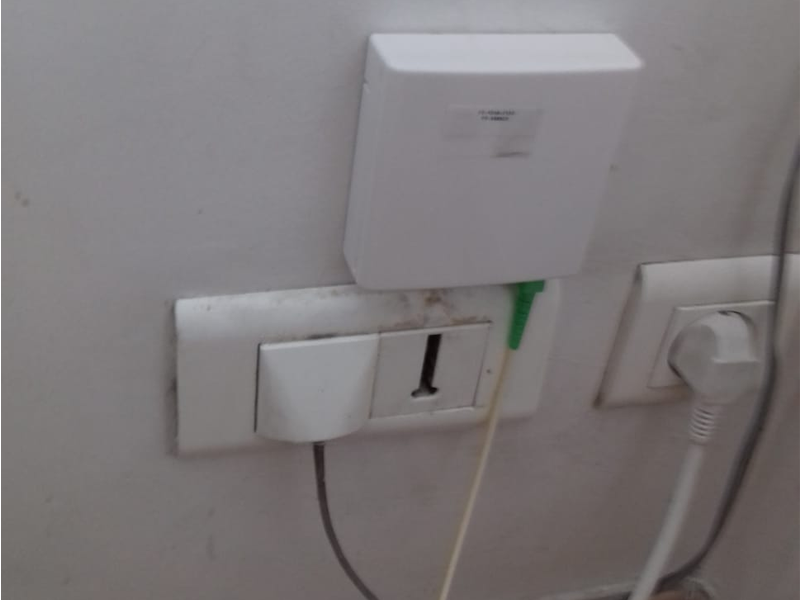

Optical termination box (OTB), is a compact fiber management box used for FTTH application. Fiber optic terminal box includes faceplate and drop cable protection box which can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. This termination box fiber optic supports fiber splicing and splitting and meanwhile provides solid protection and management for the FTTx network building. TUOLIMA has been manufacturing termination boxes for fiber optic cable since 2009 and received popularity all over the world.

Our optical termination boxes have many specifications for you, such as a 2 port fiber termination box, 4 port fiber termination box, 6 port fiber termination box, 8 port fiber termination box, 12 port fiber termination box. Besides that, in terms of installation and using occasions, the fiber optic splice box can be classified into fiber termination box wall mount, fibre or fiber access terminal box, FTTH outdoor fiber optic termination box, indoor fiber termination box, ofc termination box, FTTH fat box, FTTH junction box, FTB fiber termination box and OTB fiber optical termination box. If you are interested in our fiber optic splice box outdoor or any other products, please contact us.

Fiber Optic Drop Cable Protection Box

TLM-B01 Drop Cable Protection Box

TLM-B02 Drop Cable Protection Box

TLM-B03 Drop Cable Protection Box

TLM-B04 Drop Cable Protection Box

TLM-B05 Drop Cable Protection Box

TLM-B06 Drop Cable Protection Box

TLM-B07 Drop Cable Protection Box

Terminal Box

TLM-A01 Terminal Box

TLM-A02 Terminal Box

TLM-A03 Terminal Box

TLM-A04 Terminal Box

TLM-A06 Terminal Box

TLM-A07 Terminal Box

Why Choose TUOLIMA Fiber Optic Terminal Box?

1. Competitive price:

We are a manufacturer of fiber optic terminal box very competitive raw material price and large orders domestic and broad.

2. Quality guarantee:

TUOLIMA has been manufacturing fiber optic terminal box since 2009. We selects 100% new plastic and stainless metal so that the terminal box could have corrosion resistance, high-temperature resistance and a smart appearance.

3. Efficient and responsible after-sales service:

TUOLIMA has an individual group of sales in charge of your complete purchase experience. Any quality problem should be raised within 7days and to them, then your products will be carefully inspected and found it a satisfied solution.

Types of Fiber Optic Terminal Boxes

The optical terminal box is also called fiber termination box, and many engineering companies also call it fiber access terminal box or OFC termination box. It is a box for protecting the optical cable and pigtail fusion at the terminal of the optical cable. It is mainly used for the straight-through force connection and branch connection of the indoor optical cable and the fixing of the optical terminal cable. It plays the role of pigtail storage and protection joints.

OFC termination boxes can be divided into different types according to different methods. For example, according to the optical cable connection method, they can be divided into the straight-through type and branched type; some can be equipped with adapters, and some cannot be equipped with adapters; according to the shell material, the optical terminal box can be divided into metal shell fiber optic terminal boxes and optical fiber terminal box with plastic shell; according to the number of optical fibers spliced, the terminal box can be divided into 2 in 8 out, 4 in 12 out, 4 in and 24 out, etc.; according to the specifications, it can be divided into four specifications of fiber optic termination box: 6 cores, 8 cores, 12 cores, and 24 cores. Different types of fiber optic terminal boxes are used in different fields and different needs, you can choose according to your own needs.

Function of Fiber Optic Terminal Box

The function of the optical fiber terminal box is to provide the fusion splicing of optical fibers and optical fibers, the fusion splicing of optical fibers and pigtails, and the handover of optical connectors. It also provides mechanical protection and environmental protection for the fiber and its components, and allows for proper inspection to maintain the highest standards of fiber management.

The optical fiber terminal box has 4 basic functions as the terminal equipment of the optical cable line.

①Fixing function: After the optical cable enters the rack, the outer sheath and reinforcing core shall be mechanically fixed, the ground wire protection components shall be installed, the end protection shall be performed, and the optical fibers shall be grouped and protected.

②Splicing function: After the optical fiber drawn out of the optical cable is spliced with the pigtail cable, the redundant optical fiber is coiled and stored, and the fusion splice is protected.

③Adjustment function: Plug the connector attached on the pigtail cable to the adapter, and realize the optical path docking with the optical connector on the other side of the adapter. Adapters and connectors should be able to be plugged and unplugged flexibly; optical paths can be freely deployed and tested.

④Storage function: Provide storage for various cross-connected optical cables between racks, so that they can be placed regularly and neatly.

Features of Fiber Termination Box

Fiber optic terminal box contains the shell, internal structure, and fiber optic splice protection elements. The advantage of the optical fiber terminal box is that it can effectively fix the optical cable and protect the optical fiber fusion point.

The fiber optic terminal box provides space for the terminated fiber optic cable and the remaining fiber storage. In addition, the fiber optic terminal box is easy to install and can be installed in different occasions, not only outdoors, but also indoors. In general, the fiber optic terminal box has the following characteristics:

1. The optical cable termination box adopts a fully enclosed design, which can effectively prevent moisture and dust, and is more conducive to protecting the optical cable;

2. The optical cable termination box can insulate the optical cable metal components from the optical cable end housing, and can easily lead to grounding;

3. The material of the fiber optic terminal box is usually metal and plastic, lightweight, more suitable for indoor installation. You can choose to install it on the wall, place it on the rack, directly place it in the channel, etc;

4. The optical cable termination box is located at the end of the network, which is convenient for optical fiber inspection when necessary;

5. The fusion splicing tray of the optical cable terminal box adopts a superimposed structure, with flexible configuration, the capacity can reach 96 cores, and the ribbon optical cable can even reach 144 cores.

FAQS OF FIBER OPTIC TERMINAL BOX

Where does Fiber Optic terminal box used?

Optical fiber communication system.

Fiber optical CATV, FTTH Fiber to the home.

Testing instruments, fiber optical sensors.

Fiber optical patch panel, cabinet type or wall-mounted type fiber optical distribution system.

What are types of fiber optic terminal box?

We classify fiber optic terminal box into terminal box and drop cable protection box of which terminal box includes by capacity such as 1 outlet or 2 outlets.

How long is the production time?

Delivery date is about 12-15workdays which depends on the order quantity.

Do you have MOQ?

Normally is 1pcs/item and it could be coordinated if you have detailed requirements.
