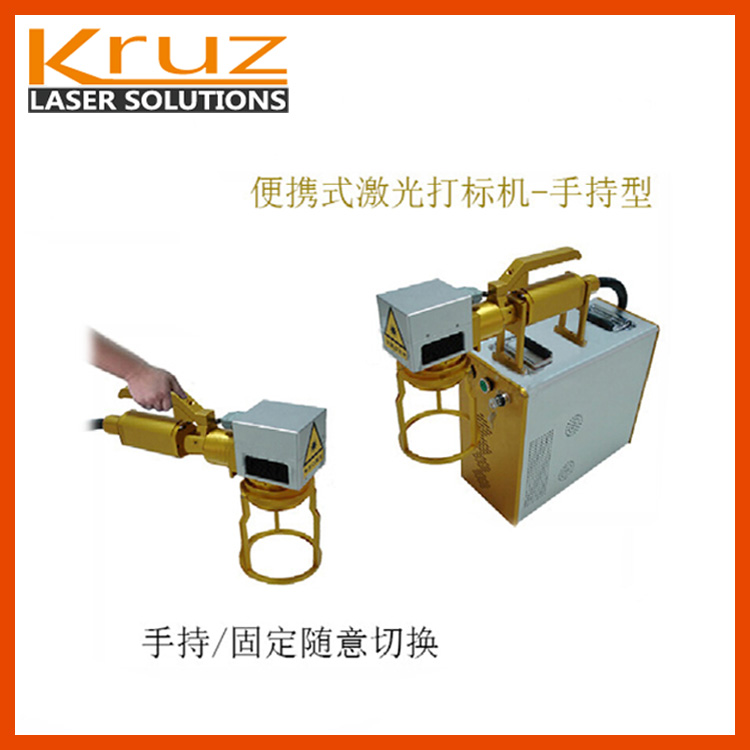

Fiber laser marking machine 20W
Quantité : 1 Prix : usd5000
Fiber laser marking machines
|
Type |
KFp Simple,KF1 Universal, KF2 Universal,KFa Advanced |
|
Laser type/Wavelength |
YLP/1064nm |
|
Laser power |
10W 20W 30W 50W |
|
Beam quality |
M2 <3</p> |
|
Pulse width |
≤100ns |
|
Pulse repetition frequency |
20kHz ~ 200kHz |
|
Power stability |
>4h +/-2% rms |
|
Laser mode |
TEM00 |
|
Marking size |
100mm x 100mm 180mm x 180mm or Order |
|
Marking depth |
Adjustable |
|
Marking speed |
250Character/s |
|
Marking width Min |
0.03mm(30μm) |
|
Marking character Min |
0.3mm |
|
Repeat marking accuracy |
≤10μ/rad |
|
Power total |
≤800W |
|
Power supply |
AC 220V/50Hz |
|
Outsize(Difference by types) |
570*840*1240mm |
Advantages:
1.The air cooling system, no need of maintenance;
2.Stable performance, the life time can be up to 100000 hours;
3.All kinds of metal materials and some kinds of non-metallic material marking; can be used for deep marking, the applicability is very widely;
4.With the computer, can freely change the marking and parameters;
5.The laser spot is small, can marking a fine,unique and never wear marks.
Applications:
1.Areas with depth, smoothness, and finer requirements;
2.Mobile phone keypad, plastic translucent keys;
3.Electronic components, integrated circuits (IC), PCB;
4.Electrical appliances, communication products, signage;
5.Sanitary ware, hardware products;
6.Tool accessories, precision instruments;
7.PVC pipe, medical equipment and other industries.
