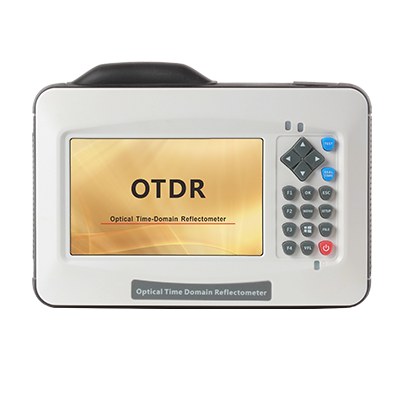

FHO3000 Mini OTDR
Prix : 100USD
Functions
FHO3000 series OTDR is high cost-effective choice. The dynamic range is from 26dB to 35dB. The humanized interface is convenient and quick to operate. With the function of VFL, Power meter, it will be a great helper in the fiber network testing.
Features
FHO3000 Mini OTDRHigh cost effective OTDR choice
Support more than 100km fiber test
Compact design, easy to carry and operate
Fiber link map fucntion
Models
Parameter
|
Item |
Parameter |
|
Pulse Width |
3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
|
Sampling Resolution |
Min 0.05m |
|
Sampling Points |
Max 128,000 |
|
Linearity |
±0.03dB/dB |
|
Loss Threshold |
0.01dB |
|
Loss Resolution |
0.001dB |
|
Distance Resolution |
0.01m |
|
IOR |
1.2000~1.7000 |
|
Distance Accuracy |
±(1m+test distance×3×10-5+sampling resolution) （excluding IOR uncertainty） |
|
Memory Capacity |
80,000 groups curve |
|
VFL* |
10mW，CW/2Hz |
|
OPM** |
Calibrated wavelength：850/1300/1310/1490/1550/1625/1650nm, Test range：-60~+10dBm |
|
Interface |
3*USB port（Type A×2，micro USB×1） |
|
Battery |
7.4V/3300mAh lithium battery, Continuous work: 6 hours(backlight off) Charge time: 3.5 hours |
|
Temperature |
Working temp: -10℃~+50℃; Storage temp: -20℃~+70℃ |
|
Size/Weight |
195×141×44mm / 0.9kg(with battery) |
|
Accessories |
Power adapter, Charge cord, Lithium battery, FC adapter,USB cable,Quick guide, CD, Carrying bag, Wrist strap |
NOTE：* FHO3000-D26-A is standard, other model is optional
** Optional
Specifications subject to change without notice.
Grandway Telecom Tech provide business telecoms solutions, telecommunication solutions, FHO3000 Mini OTD and etc. Want to know micro otdr price? Contact us.
