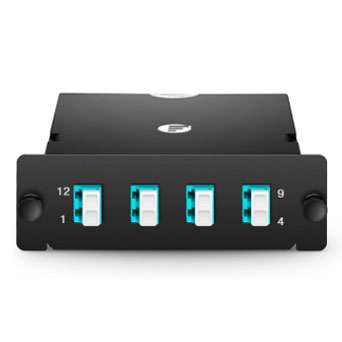

FHD MTP®-8 Cassette
High-density wiring application. The optical fiber distribution box can be installed in an FHD series frame and wall-mounted distribution box to provide high-density wiring and meet future capacity expansion requirements.
Specification of FHD MTP®-8 Cassette
|
Number of Optical Fiber Cores |
8 cores |
Optical Fiber Type |
50/125 multimode OM4 microns |
|
Front-end Connector |
4×LC/UPC Duplex |
Back-end Connector |
1×MTP®/APC male (with guidewire) |
|
The MTP ® Adapter |
Key up-Key down |
Size (H x W） |
35x109x118mm |
|
Insertion Loss |
MTP®≤0.35dB, LC≤0.2dB |
Return Loss |
MTP®≥60dB, LC≥50dB |
|
Operating Temperature |
-10℃~+60℃ |
Storage Temperature |
-10℃~+60℃ |
As one of fiber optic equipment manufacturers, PHX FIBER products are widely applied in fiber optical communication systems, fiber optic sensors, CATV, fiber lasers and other fiber optical instruments, etc.
As one of fiber optic equipment suppliers , we provide different mtp cassette types, such as single mode mpo mtp cassette , mtp fiber cassettes , mtp to lc cassette, mtp mpo cassette.
