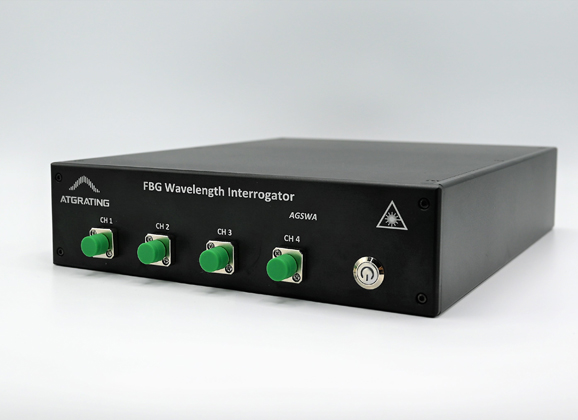

FBG Wavelength Interrogator
Quantité : 5000pcs/we Prix : 100-1000
The FBG Wavelength Interrogator AGSWA is designed to be a robust, reliable and long-term filed operation for the FBG fiber sensing system. Based on a built-in wavelength analysis module, AGSWA can update the data in high accuracy and high frequency.
AGSWA responds directly to the user commands of the fiber optic interrogator core and outputs sensor wavelength data. It provides a single suite of tools for data acquisition, computation, and analysis of optical sensor networks.
Features Of FBG Wavelength Interrogator
Built-in Wavelength Module
Spectral Diagnostic View for Optimizing Sensor System Setup and Operation
High Stability and Reliability
Fast, Simple and Repeatable Installation
Application Of FBG Interrogator
Continuous Lifetime Health Monitoring of Bridges, Dams, Buildings, Tunnels, Ships, Aircraft, Trains, and Other Complex Structures
Measurements of Fiber Bragg Grating (FBG) Strain Gages, Temperature Probes, Accelerometers, Pressure, Displacement, and Other FBG Sensors
3Simultaneous Static and Dynamic Measurement
Specification Of FBG Wavelength Interrogator
|
Optical Properties |
||
|
Number of Optical channels |
1, 2, 4, 8, 16, 24, 32 or 36 |
Customized |
|
Scan Frequency |
5000 Hz 500Hz |
Single Channel Four Channels |
|
Wavelength Range |
1510nm-1590nm |
|
|
Wavelength Repeatibility |
+/-3pm |
|
|
Wavelength Resolution |
1 pm |
|
|
Dynamic Range |
>30 dB |
|
|
Standard number of FBG Per Channel |
40 |
|
|
Connector |
FC/APC |
Customized |
|
Data Processing Capabilities |
|
|
Interface |
Ethernet |
|
Software Features |
For spectral analysis, peak detection, data logger, peak tracking, user can read out in temperature, pressure, or strain, etc, save data to excel document |
|
Software support |
Windows |
|
Mechanical, Environmental, Electrical Properties |
|
|
Dimension |
260mm*210mm*62mm |
|
Operation Humidity |
0%-80%RH |
|
Operation Temperature |
-5° to +50° C |
|
Storage Temperature |
-20° to +60° C |
|
Input Voltage |
DC 12V |
|
Maximum Power |
30W |
If you want to know more about fbg interrogator price, please contact us.
We can also offer high quality fbg wavelength stabilizer for sale, if you have needs, please leave us a message.
