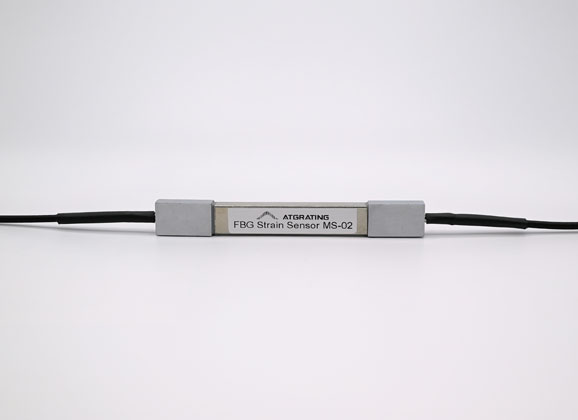

FBG Strain Sensor MS-02
Surface mounted optical strain gauge MS-02 is mainly used to monitor the stress and deformation of various structural surfaces. The sensor is packaged with high-performance stainless steel material, and is installed on the surface of the monitored object by gluing or spot welding without causing any damage to the surface of the measured object. Due to its small size and convenient installation, it is more suitable for small spaces and laboratories, and occasions where the object to be measured is not easily damaged.
Features Of optical fibre strain gauge MS-02
l High precision, reliability, and stability
l Minimal temperature drift
l All-optical measurement, intrinsically safe
l Long-term zero point stability
l Easy to install
Application Of FBG Strain Sensor MS-02
Surface strain measurement of steel structure
Bridge structural health monitoring
Surface strain measurement of polymer materials
Pre-stressed load measurement
Strain measurement of and storage tanks
Specification Of FBG Strain Sensor MS-02
|
Parameter |
Unit |
Value |
|
Center Wavelength |
nm |
1460 ~ 1610 |
|
Range |
με |
±1500 |
|
Resolution |
με |
0.01% F.S. |
|
Accuracy |
με |
0.1% F.S. |
|
Material |
-- |
Stainless steel |
|
Dimension |
mm |
82(L) x 13(W) x 7(H) |
|
Installation |
-- |
Paste or welding |
|
Pigtail Length |
m |
Φ3mm armored cable, 1m at both ends, or customize |
|
Optical Connector |
-- |
FC/APC, or customize |
|
Operating Temperature |
°C |
-20 ~ +80 |
The sensor accuracy does not contain error sources originating from the read-out equipment.
AtGrating is a professional supplier for optical fiber sensing. AtGrating offers fiber optic displacement sensor, fiber bragg grating pressure sensor, fiber optic sensing solutions, etc. For more information, please feel free to contact us!
