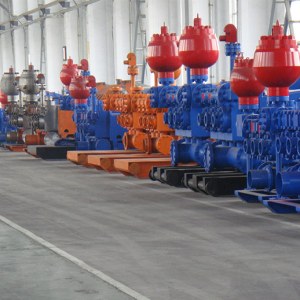

F1600 Triplex Piston Mud Pump
The pump has features of advanced structure, small volume, reliable operation, easy maintenance.
The cylinder is made of alloy steel forgings, and the three cylinders of each pump are interchangeable.
The suction valve and discharge valve of F1300 and F1600 are interchangeable.
In order to enhance its corrosion resistance, the cylinder surface is processed by chemical nickel plating.
The design of straight-through cylinder valve structure, reduced the volume of the hydraulic cylinder and increased the volumetric efficiency
The hydraulic cylinder, cylinder liner, piston, valve body, valve seat, valve spring, seal, valve cover, cylinder head of F1300 and F1600 are interchangeable
Technical Specifications of F1600 Mud Pump:
|
Name |
Description |
|
Model |
F-1600 |
|
Max. input power (kw) |
1600 (1193) |
|
Rated speed spm |
120 |
|
Max. liner bore in.(mm) |
7" (177.8) |
|
Stroke in. (mm) |
12 " (304.8) |
|
Cylinder hydraulic test pressure psi(kg/cm2) |
7500 (527) |
|
Gear ratio |
4.3: 1 |
|
Suction pipe dia. in. |
12 " |
|
Discharge pipe dia. in. |
5 " |
|
Valve |
API 7 |
|
Weight (excl. belt wheel) (kg) |
25500 |
|
size |
4876*2413*2095mm |
|
Manual and main maintenance catalog |
mud pump package operating manual and maintenance catalog |
As one of oil well equipment manufacturers, we will provide more kinds of related products for sale, anything you need, please contact us.
SAIGAO GROUP specializing in design, research and development, processing and manufacturing, sales and export of machinery equipment, with leading products comprising various kind of mud pumps, down-hole motors, any kinds of screen , cementing tools as well as any kinds of wellhead equipment.
