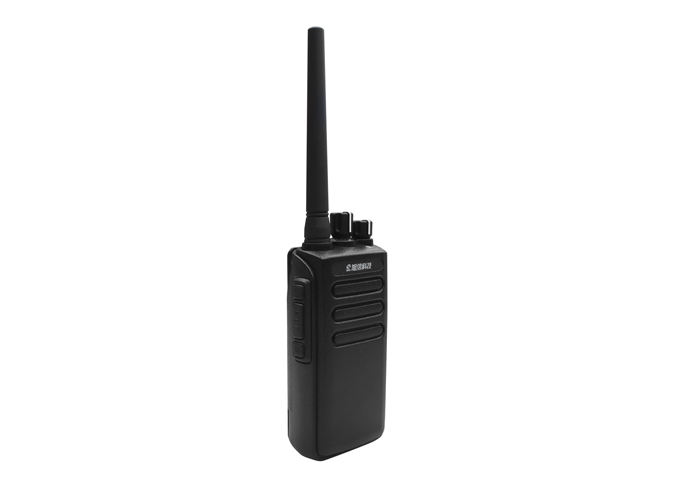

Explosion Proof Walkie Talkie

Explosion proof walkie talkie, mode N10Ex, passed chemical IIB and dust explosion-proof certification. The flame proof walkie talkie is small and easy to carry, and the intercom distance is very long. The call quality is clear and loud even in a noisy environment, and ex proof walkie talkie can be used with other brands of walkie-talkies on the same frequency. It is suitable for flammable and explosive environments such as petrochemicals, gas stations, emergency rescue, storage of hazardous chemicals, natural gas inspections, and pharmaceutical factories with explosion proof handphone.

Intrinsically Safe Two Way Radios For Hazardous Sites

Intrinsically safe two-way radios, such as those offered by Xuxin, are specifically designed for use in hazardous sites where the risk of explosions or fire exists. These explosion proof 2 way radios provide reliable communication while ensuring the safety of workers in potentially explosive environments. Built with robust construction and advanced technology, they are certified as intrinsically safe and explosion-proof.

Xuxin's intrinsically safe two-way radios incorporate specialized features to mitigate the risk of sparks or electrical discharge that could ignite flammable substances. They are made of durable and flameproof materials, designed to withstand harsh conditions commonly found in hazardous sites. These radios also meet stringent safety standards and certifications for use in explosive atmospheres.

With the explosion proof two way radio, workers can communicate seamlessly and efficiently, promoting collaboration, coordination, and enhanced safety in the field. They offer clear audio transmission, long battery life, and reliable range, enabling effective communication even in challenging environments. Whether it's an oil refinery, chemical plant, or other high-risk locations, Xuxin's intrinsically safe two-way radios provide a vital communication solution while prioritizing the safety of workers operating in hazardous sites.

Intrinsically Safe Flame Proof Walkie Talkie Parameters

Explosion-proof Mark

Ex ib IIB T4 Gb

Frequency Range

400-470MHZ

Number of Channels

16

Operating Temperature

-20°C~50°C

Antenna Impedance

50Ω

Storage Temperature

-40°C~60°C

Working Voltage

7.4V

Battery Capacity

2600mAH

Weight

342g

Size

242.5*67.0*51.2mm (including antenna and back clip)

Protection Class

IP67

Analog Sensitivity

0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(Typical)

Digital Sensitivity

0.3uV/-117.4dBm(BER 5%) 0.7uV/-110dBm(BER 1%)

Channel Spacing

12.5KHZ

Frequency Stability

±1.0ppm

Intermodulation

TIA603C: 65dB ETSI: 65dB

Adjacent Channel Selectivity:

TIA603C: 60dB@12.5KHZ ETSI: 60dB@12.5KHZ

Co-channel Rejection

12dB@12.5KHZ

Spurious Response Suppression

TIA603C: 70dB ETSI: 70dB mailto: 60dB@125.5KHZ

Receive Spurious Radiation:

< -57dBm@1GHZ > -47dBm@1GHZ

Block

84dB

Rated Audio Power: 1W

1W

Audio Response:

+1dB~-3dB

Audio Distortion:

≤ 3%

Frequency Stability :

±1.5ppm

Transmit Power: Low: 1W High

3.5W

FM Noise:

40dB@12.5KHZ

Transmit Stray Radiation:

< -36dBm@1GHZ > -30dBm@1GHZ

Adjacent Channel Power

-60dB@12.5KHZ

FM Modulation Mode

12.5KHZ: 11F0F3E

4FSK Digital Modulation Mode:

12.5KHZ(data only): 7K60FXD12 5KHZ(data+voice): 7K60FXE

Modulation Limit:

2.5KHZ@12.5KHZ

Rated Audio Distortion:

≤ 3%

Digital Protocol:

ETSITS102361-1, -2, -3

Digital Voice Codec:

AMBE+2TM

Features of Explosion proof Walkie talkie

01

Intrinsically Safe Walkie Talkie with Chemical Explosion-proof

Explosion proof walkie talkie with Ex IB IIB T4 Gb, dust explosion-proof: Ex ibD 21 T130℃.

02

Small Size for Intrinsically Safe Walkie Talkie

Explosion proof walkie talkie with 2 way radios, easy to carry, comfortable feel, bring comfortable phone experience.

03

2600mah Intrinsically Safe Battery for Intrinsically Safe Walkie Talkie

Explosion proof walkie talkie with two way radio, super standby, talk time greatly improved.

04

IP67 Protection Grade of Intrinsically Safe Walkie Talkie

Explosion proof walkie talkie with rain proof, dust proof, pressure resistance and fall resistance.

05

The Intercom Distance is Far in Intrinsically Safe Walkie Talkie

The indoor environment is about 1 km, the open environment is about 3 km, according to the actual measurement of the customer's environment.

If you want to know more kinds of explosion proof devices, please visit our website.
