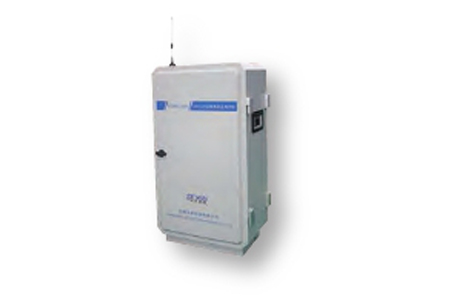

EQMS-200 VOCs Online Monitoring System
Quantité : 10,000 Prix : 0-50,000
Overview Of EQMS-200 VOCs Online Monitoring System
EQMS-200 VOCs online monitoring system adopts PID (photoionization detector ) for gas detection. The target gas is irradiated I bombarded by ultraviolet light produced by the ion lamp, and is ionized after absorbing enough uv energy. The concentration of the target gas can be detected by detecting the tiny current generated after the ionization of the gas. This type of VOC monitoring instruments manufactured by ambient air quality monitoring system manufacturers like ZETIAN can be used for different applications.
CompositionSpecifications
Composition Of EQMS-200 VOCs Online Monitoring System
The voc monitoring system consists of a sampling unit, condensing unit, zeroing unit, calibration unit, display unit, pressure alarm unit and analysis instrument. It is a type of air quality monitor for sale. The sample gas enters into the PIO under the action of filtration and condensation of the suction pump. The VOC monitoring equipment transmits the processed concentration signal to the display unit, the end user, and the EPA platform. The user can set the auto-zeroing and calibration period according to the actual situation. While the pressure alarm unit outputs a pressure alarm signal when the injection port of the analysis instrument is blocked, prompting the end user to clean the filter in time.
Specifications Of EQMS-200 VOCs Online Monitoring System
|
Measurement Principle |
PID (Photoionization Detector) |
|
Measurement gas |
Benzene, xylene, naphthalene, octane, ethylene, cyclohexane, acetone, propyl aldehyde, ether, etc. |
|
Measurement Range |
0-50pp m (Customizable) |
|
Detection limit |
10ppb |
|
Drift/ Repeatability |
±1%~±5% |
|
Measurement error |
<±5%FS</p> |
|
Sampling flow |
2L/min |
|
Response time |
< 15s |
|
Historical data storage |
10 years |
|
installation method |
Wall mounting typeor cabinet type |
|
Enclosure rating |
IP65 |
|
Ambient temperature |
-25℃~55℃ |
|
Display |
4.3-inch touch LCD screen |
|
Power supply |
AC 220V, 50-60Hz |
|
Power Consumption |
50W |
|
Weight |
50kg |
|
Carrier gas and sample gas flow control |
Electronic monitoring |
|
Communication interface |
RS232/485 |
|
Communication protocol |
HJ/T212, modbus |
