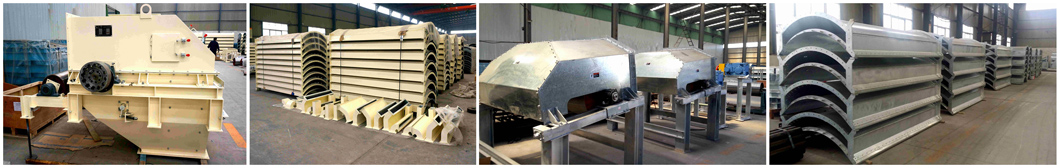

Enclosed Belt Conveyors
Overview
•The JINGU enclosed belt conveyor are suitable for conveying of medium and long distances and of all ranges of capacity, featuring large output, low energy consumption and low maintenance cost
•Complete with plough type tripper for multipoint discharge process Up to 2000 ton per hour for grain and oilseeds
Features
Product Introduction
The enclosed belt conveyor has been widely used and promoted in the grain terminal, grain depot, oilseed crushing plant, flour mill plant, feed mill plant because the overall efficiency attributed to energy-saving and low consumption is becoming more and more evident in the horizontal transport of grain.
Characteristic Features
1). Enclosed belt conveyors are equipped with lined main inlet and outlet hopper at head with polyurethane liners.
2). Belts of conveyorlegs are SOF & SOR (Static, Oil & Fire resistant) & (Super Oil Resistant).
3). A complete high quality set of El. motor (as Siemens or similar) with drive (reducer as SEW, or similar) is supplied along mounting frames and substructures, with safety guard and mounting brackets.
4). Gravity take up-section or Screw take up-section are supplied at each enclosed belt conveyor.
5). Head and tail section are delivered totally assembled, as well body sections are totally assembled in the sections of b=3.0m
6). Belt Cleaning after head section are supplied, providing easy in-line cleaning of the belt, as well a grain spillage returning unit at tail section are included in a delivery.
7). Inspection and maintenance doors on head are supplied.
8). All parts, as head, boot and body section are proposed for on bolts and nuts..
Service
JINGU technical center can help our client to finish feasibility study, environment impact assessment and safety assessment and also provides turnkey service with high efficiency.
JINGU has its own various processing equipment and takes strict control measures on product quality, which results in fast delivery within a short time. Besides, JINGU can guarantee completion and operation as scheduled with its strong service team for installation and after–sales service.
Specifications
MODEL |
BELT WIDTH (mm) |
CAPACITY (m3/h) |
SPEED (m/s) |
MAX. INCLINED ANGLE |
DSDC50 |
500 |
30~80 |
0.8~2.5 |
10° |
DSDC65 |
650 |
80~150 |
0.8~3.15 |
|
DSDC80 |
800 |
150~300 |
1.0~3.15 |
|
DSDC100 |
1000 |
250~600 |
1.0~3.15 |
|
DSDC120 |
1200 |
400~800 |
1.6~4.0 |
|
DSDC140 |
1400 |
600~1000 |
1.6~4.0 |
|
DSDC160 |
1600 |
800~1500 |
2.5~5.0 |
Personne à contacter : Zhengang Chang, +86 0371 86503865
