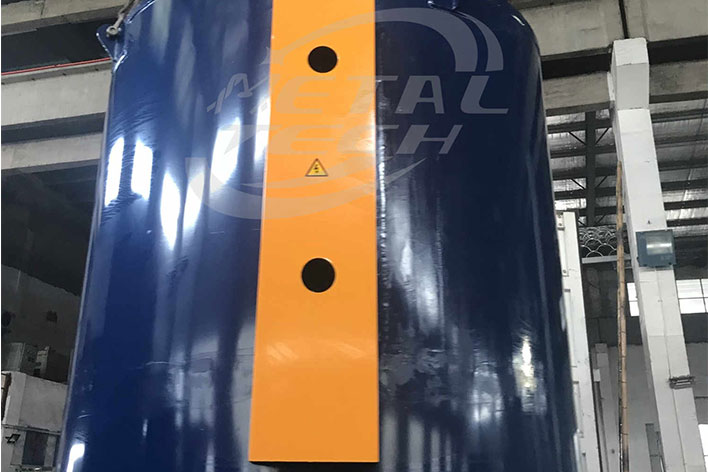

Electric Annealing Furnace
Metal tech electric annealing furnace is one of the heat treatment equipment in mechanical industry. Which put the wire or metal parts in different heating furnaces, slowly heat them to a certain temperature, keep them for a period of time, and then cool them at an appropriate speed (usually natural cooling, sometimes controlled cooling).
According to different energy sources, it can be classified into electric energy, gas energy and oil energy. Users can choose according to their own situation. This is the annealing furnace of electric energy.
Specifications of Electric Annealing Furnace
Furnace specification |
Power supply: Electricity |
Capacity: 2.0T/8hours |
|
Power: 70kw |
|
Furnace Body |
5mm Q235 board furnace shell |
Lightweight firebrick Internal liner |
|
Holocellulose alumina silicate keeping temperature |
|
Heating element: Cr20Ni80 |
|
Furnace Tube |
Thickness: 8mm, |
Dia.: 800mm, |
|
high: 1200mm |
|
Material: Stainless Steel |
|
Working Process of Annealing Wire |
a. Two hours heating to 650°C-700°C |
b. Keeping Temperature 650°C-700°Cfor 2 hours |
|
c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C |
|
d. Taking out of the tube put another one in |
|
e. When the tube temperature is below 170°C, take the wire out |
Advantages of Electric Annealing Furnace
Metal tech Annealing furnace use high-quality material parts, strict quality management all these guarantee superior quality and long performance Annealing furnace life.
If you want to know more about annealing furnace pdf, please visit our website and download it.
Now the price of wire mesh welding machine is affordable, if you want to buy a high quality wire mesh manufacturing machine, please leave us a message.
