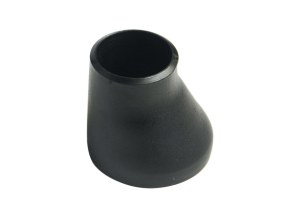

Eccentric Reducer Black Paint Seamless Buttweld
Quantité : 1000000 pc Prix : USD0.5-USD3000.0
The Center point of the circle at both ends of the tube is not on the same straight line is called concentric reducers. The Concentric reducer (reducing pipe) is a pipe fitting used for the diameter of the pipe. The commonly used forming process is reducing diameter pressing, expanding diameter pressing or reducing diameter plus expanding diameter pressing, and stamping forming can also be used for reducing diameter of certain specifications.
Ecc Reducer Black Paint Seamless Buttweld Dimensions
Size |
O.D at Bevel |
H |
Size |
O.D at Bevel |
H |
||
Large End |
Small End |
Large End |
Small End |
||||
3/4"x1/2" |
26.7 |
21.3 |
38 |
5x4" |
141.3 |
114.3 |
127 |
3/4"x3/8" |
26.7 |
17.3 |
38 |
5x3 1/2" |
141.3 |
101.6 |
127 |
1x3/4" |
33.4 |
16.7 |
51 |
5x3" |
141.3 |
88.9 |
127 |
1x1/2" |
33.4 |
21.3 |
51 |
5x2 1/2" |
141.3 |
73 |
127 |
1 1/4x1" |
42.2 |
33.4 |
51 |
5x2" |
141.3 |
60.3 |
127 |
1 1/4x3/4" |
42.2 |
26.7 |
51 |
6x5" |
168.3 |
141.3 |
140 |
1 1/4x1/2" |
42.2 |
21.3 |
51 |
6x4" |
168.3 |
114.3 |
140 |
1 1/2x1 1/4" |
48.3 |
42.2 |
64 |
6x3 1/2" |
168.3 |
101.6 |
140 |
1 1/2x1" |
48.3 |
33.4 |
64 |
6x3" |
168.3 |
88.9 |
140 |
1 1/2x3/4" |
48.3 |
26.7 |
64 |
6x2 1/2" |
168.3 |
73 |
140 |
1 1/2x1/2" |
48.3 |
21.3 |
64 |
8x6" |
219.1 |
168.3 |
152 |
2x1 1/2" |
60.3 |
48.3 |
76 |
8x5" |
219.1 |
141.3 |
152 |
2x1 1/4" |
60.3 |
42.2 |
76 |
8x4" |
219.1 |
114 |
152 |
2x1" |
60.3 |
33.4 |
76 |
8x3 1/2" |
219.1 |
101.6 |
152 |
2x3/4" |
60.3 |
26.7 |
76 |
10x8" |
273 |
219.1 |
178 |
2 1/2x2" |
73 |
60.3 |
89 |
10x6" |
273 |
168.3 |
178 |
2 1/2x1 1/2" |
73 |
48.3 |
89 |
10x5" |
273 |
141.3 |
178 |
2 1/2x1 1/4" |
73 |
42.2 |
89 |
10x4" |
273 |
114.3 |
178 |
2 1/2x1" |
73 |
33.4 |
89 |
12x10" |
323.8 |
273 |
203 |
3x2 1/2" |
88.9 |
73 |
89 |
12x8" |
323.8 |
219.1 |
203 |
3x2" |
88.9 |
60.3 |
89 |
12x6" |
323.8 |
168.3 |
203 |
3x1 1/2" |
88.9 |
48.3 |
89 |
12x5" |
323.8 |
141.3 |
203 |
3x1 1/4" |
88.9 |
42.2 |
89 |
14x12" |
355.6 |
323.8 |
330 |
3 1/2x3" |
101.6 |
88.9 |
102 |
14x10" |
355.6 |
273 |
330 |
3 1/2x2 1/2" |
101.6 |
73 |
102 |
14x8" |
355.6 |
219.1 |
330 |
3 1/2x2" |
101.6 |
60.3 |
102 |
14x6" |
355.6 |
168.3 |
330 |
3 1/2x1 1/2" |
101.6 |
48.3 |
102 |
16x14" |
406.4 |
355.6 |
356 |
3 1/2x1 1/4" |
101.6 |
42.2 |
102 |
16x12" |
406.4 |
323.8 |
356 |
4x3 1/2" |
114.3 |
101.6 |
102 |
16x10" |
406.4 |
273 |
356 |
4x3" |
114.3 |
88.9 |
102 |
16x8" |
406.4 |
219.1 |
356 |
4x2 1/2" |
114.3 |
73 |
102 |
18x16" |
457 |
406.4 |
381 |
4x2" |
114.3 |
60.3 |
102 |
18x14" |
457 |
355.6 |
381 |
4x1 1/2" |
114.3 |
48.3 |
102 |
18x12" |
457 |
323.8 |
381 |
|
18x10" |
457 |
273 |
381 |
Concentric Reducer Black Paint Seamless/Welded VS Eccentric Reducer
1. Standard (Similarity):
Both eccentric reducer black paint and stainless steel eccentric reducer manufacture standards can be ASME B16.9, ASME B16.28, MSS SP-43, MSS SP-75 JIS B2311, DIN2605/2615/2616/2617, GOST 17375/17376/17378/17379, ISO
2 Wall Thickness (Similarity):
Both eccentric reducer black paint and stainless steel eccentric reducer wall thickness can be SCH10/10S, SCH20/the 20S, STD,SCH40/40S, XS,SCH80, XXS, ETC.(for ANSI), SGP(for JIS)
3. Range of Applications (Similarity):
Size: 1/2"-48"(DN15-DN1200), or even bigger
Finishing: Black, Vanish, Oiled, Galvanized.
Connection type: Butt Welding
4. Installation (Similarity and Difference):
The welding method is the same, the stainless steel reducer has corrosion resistance, suitable for the corrosive medium pipeline.
Eccentric Reducer Black Paint Seamless Buttweld FAQs
1. What is the Difference Between Concentric Reducer and Eccentric Reducer in Application?
When the diameter is changed, the concentric reducer has small interference to the fluid flow state. So the concentric reduce is widely used in gas and vertical liquid pipe system. The eccentric reducer is flat on one side which is good for exhaust or liquid drainage. Therefore, the eccentric reducer is generally used in a horizontally installed liquid .
- How is the Offset Distance Calculated on an Eccentric Reducer?
As one of the most professional China valves suppliers, Hebei Leading offers a large range of pipeline products, including industrial valves, flanges, pipe products. If you are facing trouble in sourcing a lot of different pipeline products, this website is a good place. We have a group of professional engineers who have 10 years plus experience.
