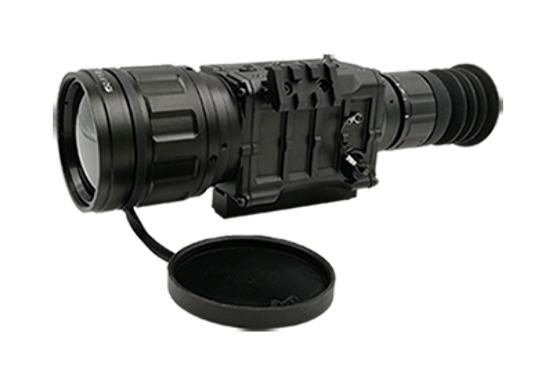

Eagle30 Thermal Imaging Sight
Overview of Eagle30 Portable Night Vision Camera
Eagle30 is a thermal weapon sight, and it is widely used for law enforcement. It is capable of detecting heat of targets against cooler background during day and night. Even in severe conditions such as total darkness, haze, dust, sleet, forest, grass, disguise and so on, it can work smoothly.
Features of Eagle30 Thermal Night Camera
·
Pixel pitch 17μm, NETD≤70mK
·
50Hz instant imaging, 3s start-up, time-saving
·
Multiple lenses for option: 35mm, 50mm and 75mm
·
AMOLED SVGA 800×600
Polarity control(black hot/white hot)
Technical Specifications of Eagle30 Portable Night Vision Camera
Item |
Eagle 30 |
||
Detector Data |
|||
Type |
Uncooled FPA |
||
Material |
aSi |
||
IR resolution |
384×288 |
||
Pixel pitch |
17μm |
||
Spectral range |
8~14μm |
||
NETD/Sensitivity |
≤70mK |
||
Lens Data |
|||
FOV/Focal distance |
10.6°×8.0°/35mm |
7.5°×5.5°/50mm |
5.0°×3.75°/75mm |
Recognition distance(Vehicle) |
950m |
1200m |
1600m |
Recognition distance(Human) |
320m |
420m |
600m |
F |
F 1.0 |
||
Eye relief |
50mm |
||
Diopter |
-5~+5 |
||
Image Performance |
|||
Display |
800×600 OLED |
||
Frequency |
50Hz |
||
Zoom |
2X |
||
Polarity/LUT mode |
Black hot/White hot |
||
Reticle color |
White/Black/Red/Green(optional) |
||
Reticle type |
5 reticle types(customizable) |
||
Startup time |
3s |
||
Contrast/Brightness |
Auto/Manual |
||
Interfaces |
|||
Format |
Waterproof aviation plug |
||
Picatinny rail |
MIL-STD 1913 |
||
Video output |
PAL |
||
Power System |
|||
Battery type |
2pcs CR123A battery |
||
Operating time |
≥4hour |
||
Environment Parameters |
|||
Operating temperature range |
-30℃~+60℃ |
||
Storage temperature range |
-40℃~+70℃ |
||
Encapsulation |
IP67 |
||
Vibration |
MIL-STD-810F |
||
Shock |
MIL-STD-810F |
||
Physical Data |
|||
Size(without eyepiece) |
156mm×61mm×66mm(with 35mm lens) |
||
186mm×70mm×70mm(with 50mm lens) |
|||
210mm×86mm×86mm(with 75mm lens) |
|||
Weight(with battery) |
560g(with 35mm lens) |
||
720g(with 50mm lens) |
|||
880g(with 75mm lens) |
|||
Packing |
|||
Standard |
Thermal imaging sight, 4pcs CR123A batteries, Picatinny rail, Picatinny quick release interface, Composite output cable, Warranty card, User manual, Certificate, Transport case |
||
Option |
5V power adapter |
||
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. |
Applications of Eagle30 Thermal Night Camera
·
Law enforcement
·
Targeting systems
·
Defense systems
·
ULIRVISION focuses on infrared thermal imaging, ultraviolet imaging, gas imaging camera, laser clearing instruments, intelligent inspection robot technology innovation and industrialization. We provide clear night vision camera and etc.
