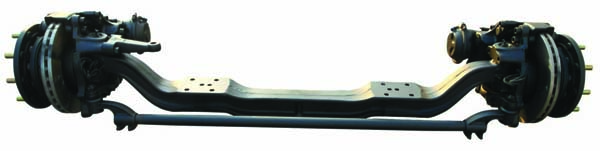

Drum/Disc Brake Front Steering Axle
Quantité : 30000
| Model | CH65F | ||
| Nominal Load(Kg) | 6500 | ||
| Wheel Tread(mm) | 2054(Drum)2032(Disc) | ||
| Kingpin Inclination(°) | 7° | ||
| Caster Angle(°) | 0° | ||
| Kingpin Camber(°) | 1° | ||
| Kingpin Distance(mm) | 1820 | ||
| Tie-in(mm) | 0~5 | ||
| Max.Turning Angle(°) | Inner 45°/Outer37° | ||
| Drum Brake Spec.(mm*mm) | ∮400*150 | ||
| Disc Brake Spec. | 22.5" | ||
| Axle Weight(Kg) | 410(Drum Brake)450(Disc Brake) | ||
| Matching Model | 12~13.7M Bus | ||
| CH65F Performance Features | |||
| 1.High Generality, meets Requirement of Mid Class Buses. | |||
| 2.High Rigidity, Low Weight of Front Axle, Economic Fuel Consumption. | |||
| 3.Tapered Roller Bearing Adopted, thus Load Capacity Increased, Steering Force Reduced. | |||
| 4.Bigger Inner Steering Angle, Excellent Maneuverability. | |||
| 5.Adjustable Tie Rod makes flexible Toe-In available, Service Life of Tire prolonged. | |||
| 6.Reasonable King Pin Incidence improved Steering Stabilization. | |||
| 7.Optimized Outer Camber prolonged Service Life of Tire. | |||
| 8.Most domestic Suspension Structure matchable. | |||
| 9.Both domestic and abroad Disc Brakes optional. | |||
| 10.Widened Shoe of Drum Brake suitable for various ASA. | |||
| 11.Standard ABS enhanced Vehicle Stabilization and Controllability. | |||
