DRILLING MACHINE
Quantité : 3000/year Prix : negotiable

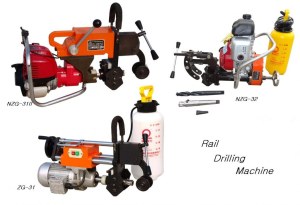

There are 3 different kinds of this machine. They are NZG-31II internal-combustion rail drilling machine,NZG-32 internal-combustion rail drilling machine,ZG-31 electric rail drilling machine.
Application:
Special tool for processing bolt connectors or electrical wiring holes on rail radials.
NZG-31II
1.Power: 1.4kW/7000rpm.
2.Drilling diameter range.
3.Spindle speed: 185rpm.
4.Aperture precision: ±0.5mm.
5.Total weight: 23kg.
NZG-32
Power: 2.2kW/3600rpm
Spindle speed: 210rpm
Borehole diameter range: φ9.8mm~φ32mm(twist drill)
φ16mm~φ31mm(hollow drill)
Aperture precision: ±0.5mm
Total weight: 38 kg
ZG-31
1.Rated power: 0.75KW.
2.Rated voltage: ~380V(Three-phase).
3.Drilling diameter range: φ9.8mm /φ20mm/φ22mm/φ24mm/φ31mm.
4.Spindle speed: 200rpm.
5.Aperture precision: ±0.5mm.
6.Total weight: 31kg.
Personne à contacter : Ellie Wang, 86 371 66956372
Bonne affaire : acheter au vendeur
