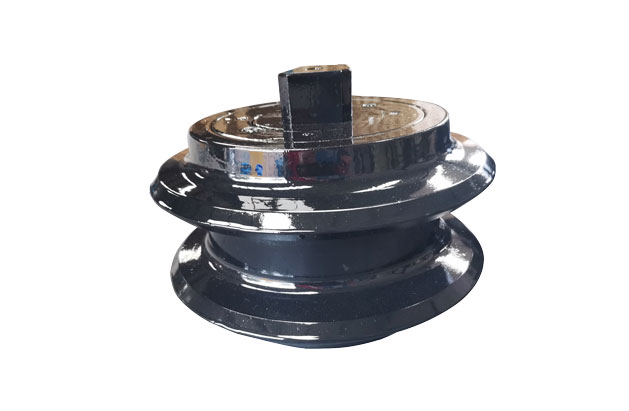

Double Disc Cutter
Double disc cutter, also known as double disk, is a kind of disc cutter with two cutter rings, which is mounted on the front and gauge area of the cutter head. It is mostly used to break soft rock with low uniaxial compressive strength (UCS≤70Mpa) and mixed ground.
Double Disc Cutter Specification
|
Double Disc Cutter |
Diameter |
Bearing Capacity |
Cutter ring |
Structure |
|
|
product |
[inch] |
[mm] |
[Tonne] |
||
|
|
20" |
508 |
35, 42 |
Optional |
Assembly |
|
19" |
483 |
35, 42 |
Optional |
Assembly / Monoblock |
|
|
18" |
457 |
28 |
Optional |
Assembly / Monoblock |
|
|
17" |
432 |
28 |
Optional |
Assembly / Monoblock |
|
|
15 1/2" |
394 |
22 |
Optional |
Assembly / Monoblock |
|
|
14 |
356 |
20 |
Optional |
Assembly / Monoblock |
|
|
12" |
305 |
16 |
Optional |
Assembly / Monoblock |
|
|
11" |
280 |
13 |
Optional |
Assembly / Monoblock |
|
|
10" |
250 |
10 |
Optional |
Assembly / Monoblock |
|
|
9" |
220 |
9 |
Optional |
Monoblock |
|
|
8" |
200 |
8 |
Optional |
Monoblock |
|
|
7" |
180 |
8 |
Optional |
Monoblock |
|
|
6 1/2" |
165 |
5 |
Optional |
Monoblock |
|
|
6" |
150 |
4 |
Optional |
Monoblock |
|
As one of rock drilling tools manufacturers, we can offer sorts of rock drilling tools for sale, anything you need, please contact us.
Personne à contacter : HeavyIndustry Litian, 0429 2269666
