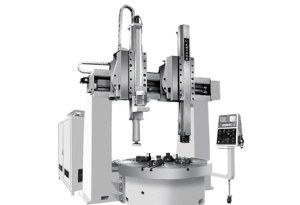

Double Column Vertical Lathe
Conventional Double Column Vertical Lathe, Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. We have several models to be selected for the best cutting need.
Features of Conventional Double Column Vertical Lathe
The CNC double column milling machine is suitable for rough or fine machining of auto, bearing, wind power, motor, and water pump, etc.
The base and column use one-piece high-quality castings.
Hydrostatic Table.
X&Z is using a brand linear guideway.
The main transmission is driven by frequency or a servo motor, simple structure, and high transmission efficiency.
Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast-moving.
Full cover is your optional together with a chip conveyor and coolant system.
Handheld Unit.
Twin spindle twin turret and twin spindle twin turret CNC lathe.
General Description of Conventional Double Column Vertical Lathe
The conventional column vertical lathe is a heavy-duty machine. It is designed for heavy cutting of your job. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal distortion and vibration dampening. It is designed for turning of big size workpieces.
The X and Z axis guideways are completely enclosed and a forced lubrication system assures high precision. The Ballscrew driving system enables rapid traverse rates and precision feeding traverse. The precision high-class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision.
The X & Z-axis can be working with the DRO system, the operator can easily set the tools and work an easier way to finish the machining.
The machine can be modified to be a 2-axis CNC control if you need it in the future.
The automatic lubrication system is standard for this machine.
The machine is equipped with a handheld unit for a better set of tools.
Parameters of Conventional Double Column Vertical Lathe
|
Model No |
C5820 |
C5225 |
C5240 |
C5250 |
C5263 |
C5280 |
|
Max Machining Diameter(mm) |
2,000 |
2,500 |
4,000 |
5,000 |
6,300 |
8,000 |
|
Max Machining Height(mm) |
1,400 |
1,600 |
1,600 |
2,000 |
2,500 |
3,000 |
|
Max Load on Table(Kg) |
6,300 |
10,000 |
15,000 |
32,000 |
63,000 |
100,000 |
|
Table Diameter(mm) |
1,800 |
2,250 |
3,500 |
4,200 |
5,800 |
6,300 |
|
Main Motor Power(Kw) |
55 |
55 |
75 |
75 |
110 |
130 |
|
Table Rotary Speed(r/min) |
2.5-80 |
2-63 |
2-40 |
1-35 |
0.34-25 |
0.25-25 |
|
Horizontal Travel X(mm) |
1,300 |
1,400 |
2,200 |
2,700 |
3,950 |
4,450 |
|
Vertical Travel Z(mm) |
1,350 |
1,000 |
1,000 |
1,250 |
1,600 |
2,000 |
|
Feeding Speed of X&Z(mm/min) |
1-2,000 |
1-2,000 |
1-2,000 |
1-3,000 |
1-3,000 |
1-3,000 |
|
Position Accuacy of X&Z(mm/1000mm) |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
|
Size of Machine LxWxH (M) |
3.7x3.6x4.9 |
5.4x4.6x4.9 |
6.8x5.0x5.0 |
8.4x6.3x5.5 |
14.2x7.2x9.2 |
15.7x8.7x9 |
|
Weight of Machine (Kg) |
25,000 |
35,000 |
50,000 |
80,000 |
180,000 |
260,000 |
Sealion Machine Tool is a professional cnc machine tool manufacturers. We provide Lathe, CNC Boring Mill, CNC Machining Center, double column machining center, twin spindle lathe, horizontal boring machine and so on. Want to know more? Please contact us.
Personne à contacter : Steven Liu, 021 57880511
