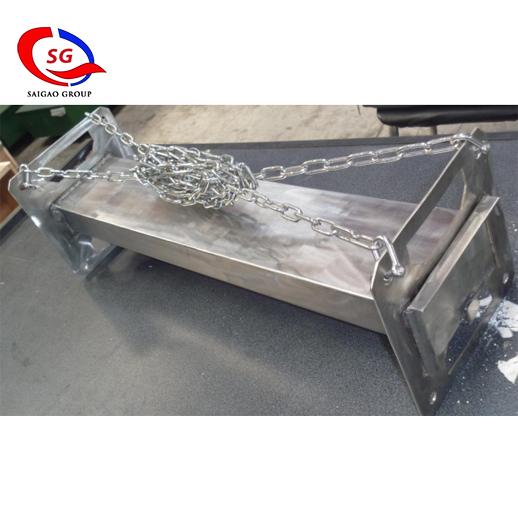

Ditch Magnet
Saigao Ditch Magnet are an oilfield tool designed to remove ferrous metal particles from drilling mud. The core part of the ditch magnet is the permanent magnets which decide the catching power of the products. The stronger the magnets, the more metal particles will be captured. As of today the strongest type of permanent magnet is neodymium rare-earth magnet, which is 7-8 times stronger than the ceramic magnet. The ceramic magnets are much weaker and heavier than the neodymium magnets so they are phasing out in today's oil industry.
The Benefits Of CMS Magnetics Saigao Ditch Magnet Drilling:
CMS Saigao Ditch Magnets Catch More! Much more powerful than ceramic magnet type so be able to catch more metal particles with one cycle.
CMS Saigao Ditch Magnets Handle Easier! It is much lighter than ceramic magnet types so it is much easier and safer to handle. Our Saigao Ditch Magnets can be handled by a regular build-up lady!
At CMS Magnetics Pay Less! Pay less and catch more than other similar products.
Ditch magnet is the most effective means of trapping and removing l particles from the drilling mud that are not filtered by the shale shaker. This unit will capture all ls through magnetic attraction and hold them until they can be removed from the mud stream. The magnet is particularly valuable and useful during milling operations. Removal of mill cuttings and debris reduces wear of mud pumps, drill bit and other equipment. It eliminates problems caused by the harmful debris that are returned to the downhole with the drilling mud. They are equally effective during washover and fishing operations.
Technical Specification of CMS Magnetics Saigao Ditch Magnets:
Model |
OD (mm) |
Magnetic Effective Area(mm) |
Strength of Magnetic Pole Surface (Gs) |
Strength From 10mm To Magnetic Pole Surface (Gs) |
Product Code |
18'' |
200×460 |
125×400 |
1400 |
700 |
L260100 |
24'' |
200×620 |
125×525 |
1400 |
700 |
L260200 |
36'' |
200×920 |
125×825 |
1400 |
700 |
L260300 |
Saigao Group is a professional oil equipment suppliers, we provide oilfield cementing tools, circulating swage, pumping unit parts, ditch magnet drilling and etc. Want to know more? Please contact us.
Personne à contacter : Liu Rex, +86 0531 69959201
