Direct Acting Bellows Steam Pressure Reducing Valve

Quantité : 1

Direct Acting Bellows Pressure Reducing Valve Structural characteristic and purpose.< /span>

Pressure Rating: 1.6- 2.5Mpa
Specification: DN15-25
Material: CF8
Standard screwed: NPT BSP

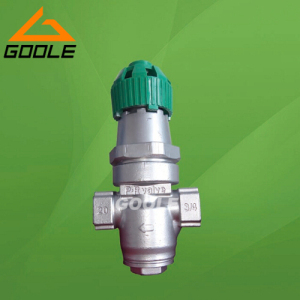

Goole Y14H/F Direct Acting Bellows Pressure Reducing Valve< span data-mce-style="color: #222222; font-family: Arial, Verdana, sans-serif; letter-spacing: 0pt;" style="color: rgb(34, 34, 34); font-family: Arial, Verdana, sans-serif; letter-spacing: 0pt;"> is newly
improved product based on MIYAWAKI. This Direct Acting Bellows Pressure Reducing Valve mat erial is Stainless steel, which can be used for some corrosive medium, it can also be used for Air, Steam, etc. The Bellows inside also ensured the high sealing performance of the valve.

This reducing valve is direct acting bellows reducing valve, mainly compose d of valve seat, valve flap (steel ball), corrugated tube combined component and spring. Set the out let pressure through adjusting spring, the opening of valve flap enlarged when the outlet pressure r educed, the opening of valve flap decreased when the outlet pressure reached to the set pressure. Th e valve pressure of the medium acts on the area of corrugated tube and transduce to adjusting spring , realizing the function of pressure reducing and regulating. This reducing valve is designed in mee t of the need of energy saving. It has the characteristics of multi-function and light. It is widely applied on water, steam, air, oxygen, liquefied gas pipe of factory and hotel. You can adjust the p ressure by rotating the plastic hand wheel, no need to use tool, the connection and installation is very convenient. The internal structure use corrugated tube, the sealing face has filtering mesh pro tecting device, which protect the internal parts from damage, and greatly prolong the service life.< /span>

Direct Acting Bellows Pressure Reducing Valve main technical parameters and indexes of perfo rmance

Nominal pressure PN1.6Mpa
Tested pressure of shell 2.4Mpa
Sealing test pressure 1.76Mpa
Max. inlet pressure 1.6Mpa
Pressure range of outlet 0.05-1.0Mpa
Min. differential pressure 0.15Mpa
Medium Water, steam, liquid, air, oxygen, nitrogen, etc.
Operating temperature 220


Direct Acting Bellows PRV material of main component.

Name of component Material of component
Valve body, bottom cover CF8
valve cover casting aluminium alloy, CF8
valve flap,Valve rod, Valve seat CF8
bellows 1Cr18Ni9Ti
Membrane Hand wheel Heat-resistant plastic
Spring of main valve 50CrVA
Adjusting spring 60Si2Mn


Y14H/F Direct Acting Bellows Pressure Reducing Valve connecting dimension.

DN G L H H1
DN15 1/2 85 140 52
DN20 3/4 95 143 55
DN25 1 105 146 58

Localisation : Heyi Industrial Zone,Oubei Town, 325105 Oubei,
Personne à contacter : Ellison Yue, 86 0577 57789960
