DIN Rückschlagventil mit innenliegender Schliessfeder
DIN Rückschlagventil mit innenliegender Schliessfeder
Quantité : 500 Prix : 50,00 €

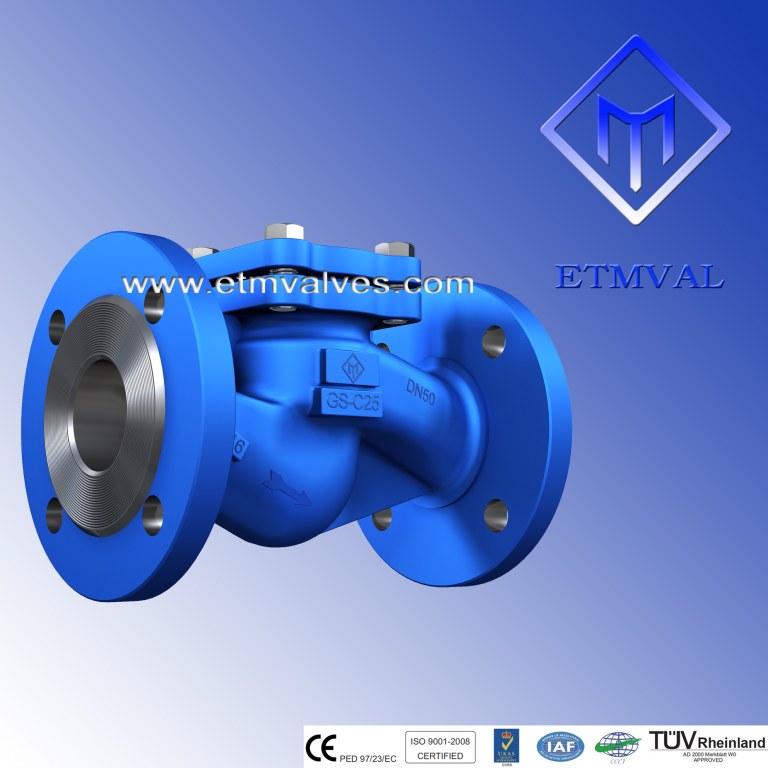

Lift Check Valve
DIN Standard Lift Check Valve
DIN Lift check valve
DIN Rückschlagventil mit innenliegender Schliessfeder
DIN Válvulas de retención de tipo pistón
DIN zpětný ventil
DIN Standard tilbakeslagsventil med fjærbelastet kjegle
DIN Standardında Kumandasız Çek Valf
Van 1 chiều kiểu nâng chuẩn DIN
ETM Code No. : ETM FIG.C.360,ETM FIG.C.361
This ETM lift check valve can be used in Industry, Powerstations, Flue gas purification plant, processing technology, gas supply,
vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district
heating, cooling and freezing systems, general plant manufacturing, steam systems.
This type valve designed to cut off the flow of industrial fluid.
This valve is maintenance-free and like all ETM valves - is classed leak rate “A” in accordance with EN 12266-1.
Products:
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 16 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 25 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 40 Bar with Flanges According to DIN EN 1092-1
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 16 Bar with Butt Weld Ends According to DIN EN 12627
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 25 Bar with Butt Weld Ends According to DIN EN 12627
ETM-FIGURE C-BS/EN Standard lift check valve spring loading PN 40 Bar with Butt Weld Ends According to DIN EN 12627
Material Equivalence:
EN Material Name----- ----- ----- ----- ---EN Number ----- ----- --Forgings----- ----- ----- --ASTM Material----- ----- ----- ----Forgings
EN 10213 GP240GH----- ----- ----- ----- -1.0619----- ----- ----- ---1.0460----- ----- ----- --ASTM A216 WCB----- ----- ----- --A105
EN 10213 G20Mo5----- ----- ----- ----- ---1.6220----- ----- ----- ---1.0437----- ----- ----- --ASTM A352 LCB----- ----- ----- ---A352 LF2
EN 10213 G17CrMo5-5----- ----- ----- ---1.7357----- ----- ----- ---1.7335----- ----- ----- --ASTM A217 WC6----- ----- ----- --A182 F11
EN 10213 G17CrMo9-10----- ----- ----- -1.7379----- ----- ----- ---1.7380 ----- ----- ----- -ASTM A217 WC9----- ----- ----- --A182 F22
EN 10213 GX5CrNi19-10----- ----- ----- -1.4308----- ----- ----- ---1.4301----- ----- ----- --ASTM A351 CF8----- ----- ----- --A182 F304
EN 10213 GX5CrNi19-11-2----- ----- ---1.4408 ----- ----- ----- --1.4401----- ----- ----- --ASTM A351 CF8M----- ----- ----- -A182 F316
Features:
Cast steel PN16, PN25,PN40 DN15 to DN500
Length acc.to DIN EN 558-1,face to face series 1 (DIN3202 series F1)
BB,Bolted Bonnet.
Spring loaded
Welded seat in stellite or Cr-steel
Disc with PTFE or RUBBER
Mediums:
Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.
Stainless Steel: Process water, aggressive media, etc.
Requirements and testing:
The test are carried out according to DIN EN12266-1
Shell test : nominal pressure (PN)X1.5
Tightness of seat : nominal pressure (PN)X1.1
Certificate of conformity in according to with PN-EN10204
Design according to PN-EN12516-2
Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.
Installation:
Lift check valve installation be installation to horizontal and vertical
Direction of flow see body mark
Connection:
Butt-Welded according to EN12627,flanged according to EN1092-1 or to customer request
Face to face dimensions according to DIN EN 558-1,face to face series 1 (DIN3202 series F1)
Operation:
Self-acting, by pressure of medium
The valves manufactured and sold by ETM ARMATUREN.
ETM trade mark: ETMARMATUREN,ETM,ETMVAL,欧罗泰克.
ETM strive on providing full package of industrial valve solution to client, focus on industrial valve manufacture, development, sales and services. ETM created an individual, characterized valve market. Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment, industrial system etc.
Our company located in Oubei Town ,Wenzhou city ,ETM takes "A Europe Standard Quality's Chinese Valve Manufacturer"as our development tenet and we are an endless way to pursue the marvelous quality as ETM quality policy, contemporarily manage in mode of scientific production, win in quality and slender profit supplement with the superior equipment, advanced manufacturing technology, ISO9001 certificate, complete inspection instruments as well as the most optimum distribution of human resources. Modernized joint-venture management mode guarantees the manufacturing technology and the excellent human resources, which perfect our quality, price and service systems. ETM valves, therefore, shares the reliance and reputable reputation from the domestic and the overseas.
ETM products including:
DIN Standard Bellows sealed stop valves (Straight-Through Type)
DIN Standard Bellows Sealed Stop Valves (Angle Type)
DIN Standard Long Life-Heavy Duty Bellows Sealed Stop Valves
DIN Standard Gland Packing Globe Valves ( Straight-Through Type)
DIN Standard Gland Packing Globe Valves (Angle Type)
DIN Standard F4 Gate valves (Length acc.to DIN EN 558-1,face to face series 14)
DIN Standard F5 Gate Valves (Length acc.to DIN EN 558-1,face to face series 15)
DIN Standard F7 Gate Valves (Length acc.to DIN EN 558-1,face to face series 26)
DIN Standard Swing Check Valves (Length acc.to DIN EN 558-1,face to face series 48 & series 1)
DIN Standard Lift Check Valves
DIN Standard Y Type Strainer
Furthermore we can manufacture and process the specifical valve upon customer's request.
ETM all valves comply to Pressure Equipment Directive 97/23/(PED),CE Marking.
