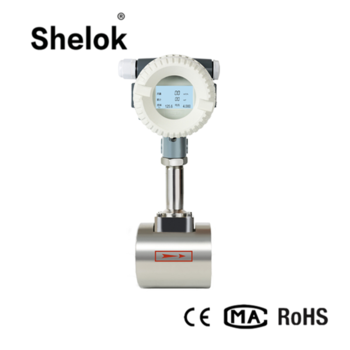

Digital Gas Steam Liquid Vortex Flow Meter

Quantité : 1   Prix : USD200~600

1.The description of the gas/steam/liquid vortex flow meter
This digital vortex flow meter uses advanced differential technology, with isolation, shielding, filtering and other measures to overcome the similar products, poor shock resistance, small signal data disorder and other issues, and the use of a unique sensor packaging technology and protective measures to ensure product reliability .

2.The Features of the digital vortex flow meter
· No moving parts, long-term stability, simple structure and easy to install and maintain
· Using the noise circuit and anti-vibration sensor head, with a certain anti-environmental vibration performance
· Using ultra low power single chip microcomputer technology, one pc 3.2V10AH lithium battery with more than 5 years service life
· The instrument coefficient of non-linear correction by software, improve the measurement accuracy
· Small pressure loss, wide measuring range
· Using EEPROM to the cumulative flow of power down protection, protection for more than 10 years

3.The specification of the digital vortex flow meter:

Nominal pass(mm) 15,20,25,40,50,65,80,100,125,150,200,250,300
Instrument material 1Cr18Ni9Ti
Nominal pressure (Mpa) PN1.6Mpa;PN2.5Mpa;PN4.0Mp
Measured medium temperature(ºC) -40~+250ºC;-40~+350ºC
Environmental conditions Temperature -10 ~ +55 ºC, relative humidity of 5% to 90%, atmospheric pressure 86 ~ 106Kpa
Accuracy Liquid: ± 0.5 for indication; gas or steam: ± 1.0,± 1.5for indication
Range ratio 1: 10;1: 15
Resistance loss factor Cd<2.6</td>
output signal Optional 4-20mA or pulse
Power supply Sensors: + 12VDC, + 24VDC (optional)
Transmitter: + 24VDC
Live display type: instrument comes with 3.2V lithium battery
Signal transmission line STVPV3 × 0.3 (three-wire), 2 × 0.3 (two-wire)
Installation method Flange clamp or integral flange connection
Transmission distance ≤500m
Signal line interface Internal thread M20 × 1.5
Explosion protection rating ExdIIBT6
Protection class IP65
Allow vibration acceleration 1.0g


4.The measuring range of the digital vortex flow meter:

Caliber (mm) Liquid measurement range (m3 / h) Gas measurement range (m3 / h)
DN15 1.2-6.2 5-25
DN20 1.5-10 8-50
DN25 1.6-16 10-70
DN32 1.9-19 15-150
DN40 2.5-26 22-220
DN50 3.5-38 36-320
DN65 6.2-65 50-480
DN80 10-100 70-640
DN100 15-150 130-1100
DN125 25-250 200-1700
DN150 36-380 280-2240
DN200 62-650 580-4960
DN250 140-1400 970-8000
DN300 200-2000 1380-11000


5.The application of the digital vortex flow meter:
The digital vortex flow meter is a volumetric flowmeter that can measure the volumetric flow of gas, steam or liquid, volumetric flow or mass flow.And can be used as a flow transmitter in the automated control system.
